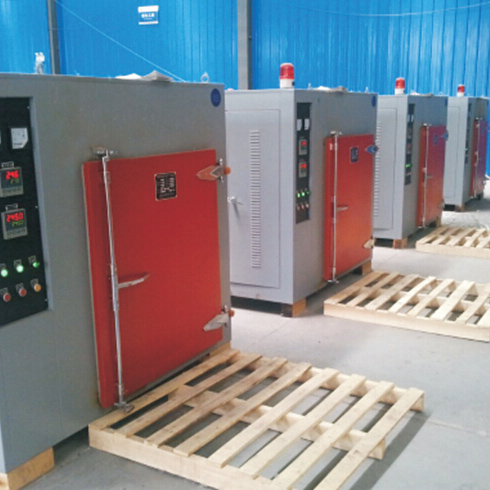

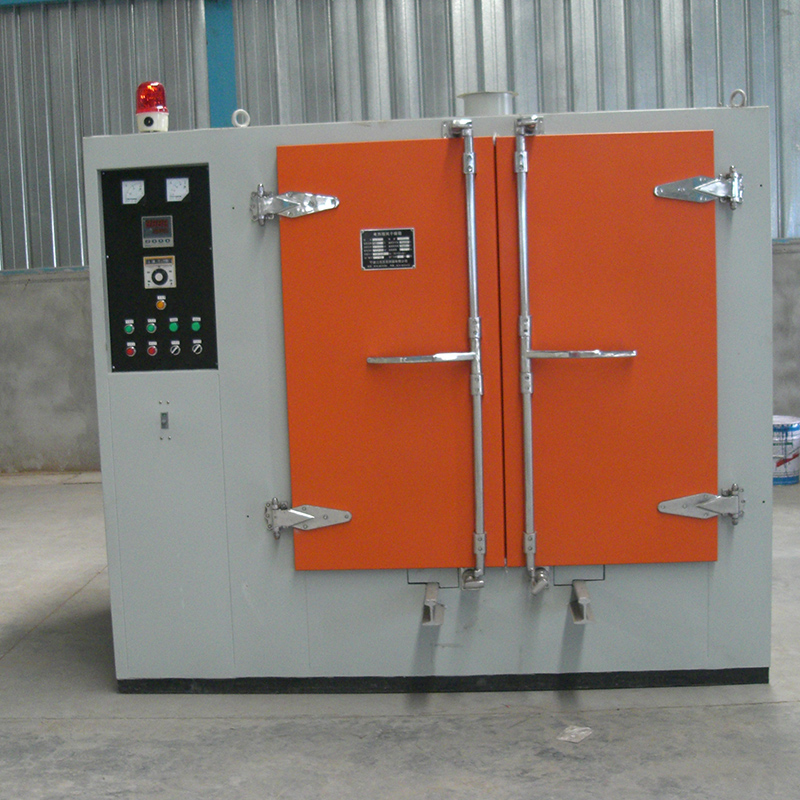

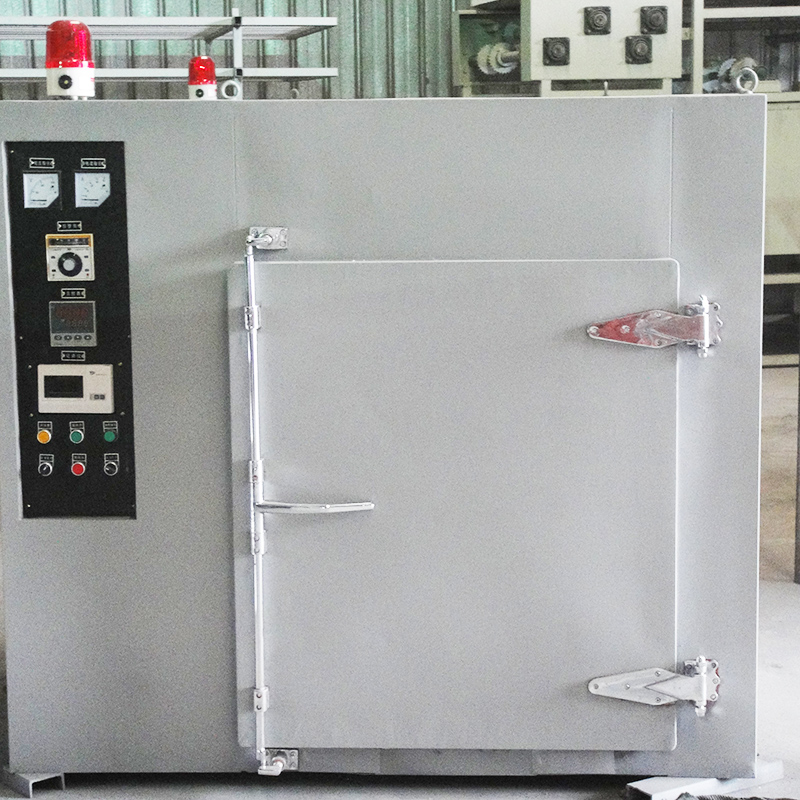

HX Series Commutator Curing Oven

Curing after molding is an essential process in the manufacturing of motor commutators, and the performance of the curing equipment has a direct impact on the final product quality.

Availability:

Quantity:



Inquire Add to Basket

Product Description

The HX Series Commutator Curing Oven developed by our company incorporates advanced technologies such as high-volume forced air circulation, integrated air duct design, and a dual air-supply circulation system. It offers rapid heating, excellent thermal insulation, and uniform temperature distribution within the chamber, ensuring consistent performance and no color variation after curing.

This series is equipped with a floor-mounted material trolley, an intelligent temperature controller, and solid-state relays (SSR) for power regulation as standard. Optional configurations include a printer, temperature recorder, and DCS (Distributed Control System) for centralized process control.

Main Technical Parameters of HX Series Commutator Curing Oven

Parameter	HX-1	HX-2	HX-3
Working chamber size (W × D × H)	500 × 600 × 700 mm	850 × 800 × 1000 mm	1200 × 1200 × 1200 mm
Operating temperature	Ambient – 250 °C	Ambient – 250 °C	Ambient – 250 °C
Power supply	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz
Heating power	5.1 kW	10.5 kW	18 kW
Temperature uniformity	±2.5%	±2.5%	±2.5%
Temperature fluctuation	±1 °C	±1 °C	±1 °C

Notes

· This is a non-standard product and can be customized according to user requirements.
