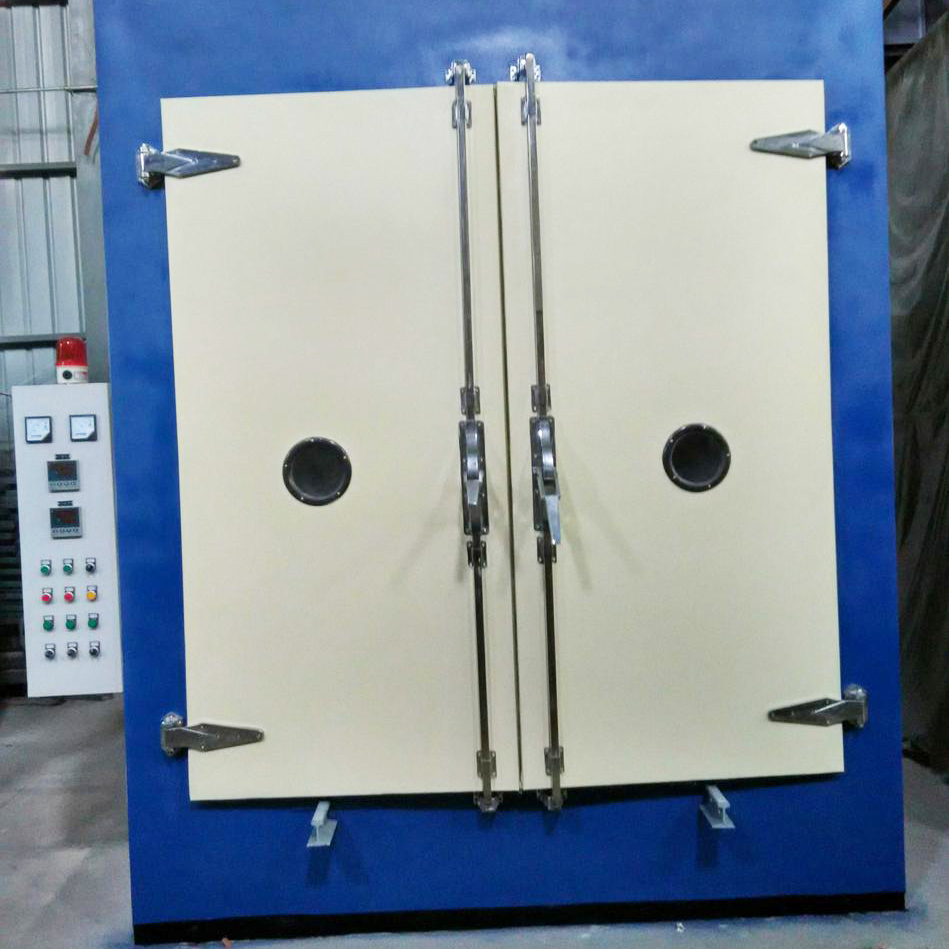

HT Series General-Purpose Forced Convection Drying Oven

The HT Series drying oven is a general-purpose forced convection drying oven featuring wide applicability, uniform temperature distribution, and excellent thermal insulation performance.

Multiple heating options are available, including electric heating, steam heating, fuel-fired heating, and thermal oil heating. The equipment can also be customized and manufactured according to specific customer requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Technical Specifications of HT Series Drying Oven

Parameter	HT-1	HT-2	HT-3	HT-4	HT-5
Chamber Size (W×D×H) (mm)	850×800×1000	1200×1200×1200	1300×1200×1500	2000×1800×1500	1800×3000×1500
Overall Dimensions (W×D×H) (mm)	1700×1200×1400	2100×1600×1900	2200×1600×2100	2900×2200×2100	2700×3400×2100
Operating Temperature (°C)	RT ~ 250	RT ~ 250	RT ~ 250	RT ~ 250	RT ~ 250
Power Supply	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz
Heating Power (kW)	10.8	15	22.5	36	45
Temperature Uniformity (%)	±2.5	±2.5	±2.5	±2.5	±2.5
Temperature Fluctuation (°C)	±1	±1	±1	±1	±1
Trolley Load Capacity (t)	—	1.5	2	2.5	3.5
Weight (t)	0.45	1.2	1.6	2.75	3.65

Notes

1. Model HT-1A is equipped with two layers of shelves and does not include rails or a trolley.

2. Non-standard models can be customized and manufactured according to specific customer requirements.

HT Series General-Purpose Forced Convection Drying Oven
