HRS Series Busbar Heat Shrink Tubing Heating Equipment

The HRS Series Busbar Heat Shrink Tubing Heating Equipment is specially designed for the heat shrink insulation process of busbars used in power transmission and distribution switchgear.
According to different production capacity requirements, the system can be configured as:

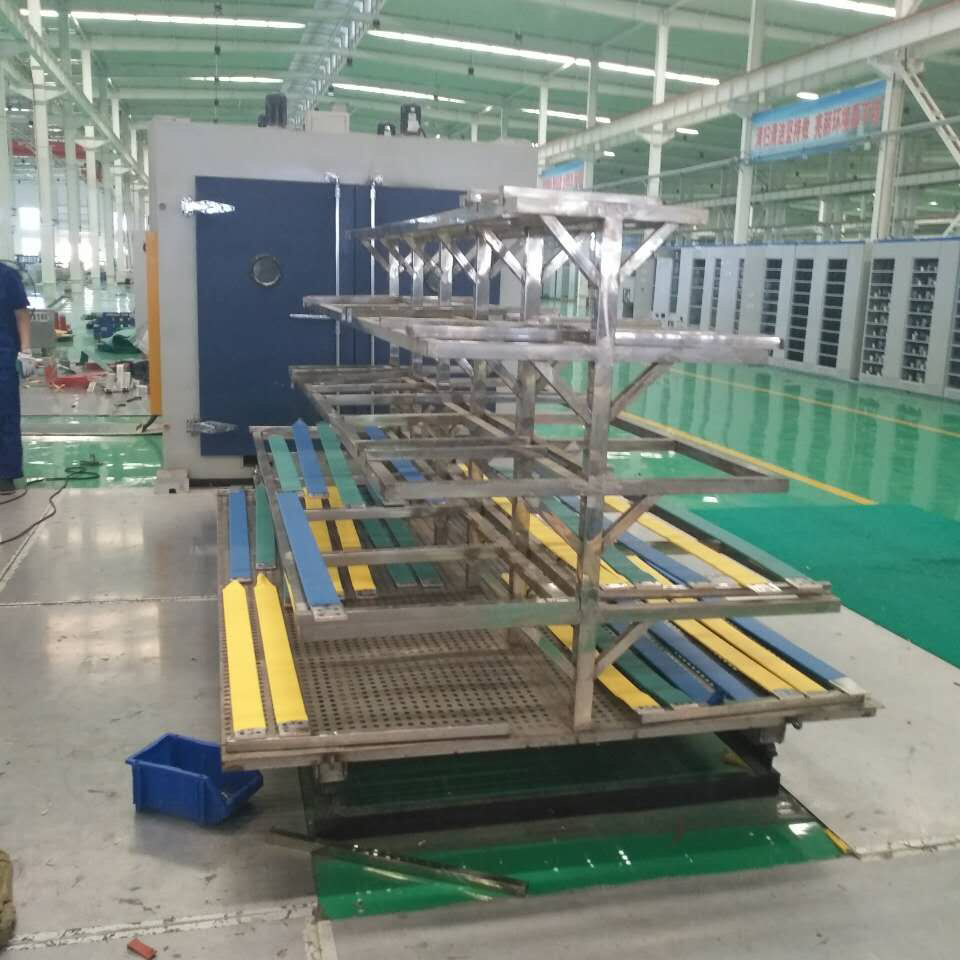

HRS-X Series Batch Oven, or

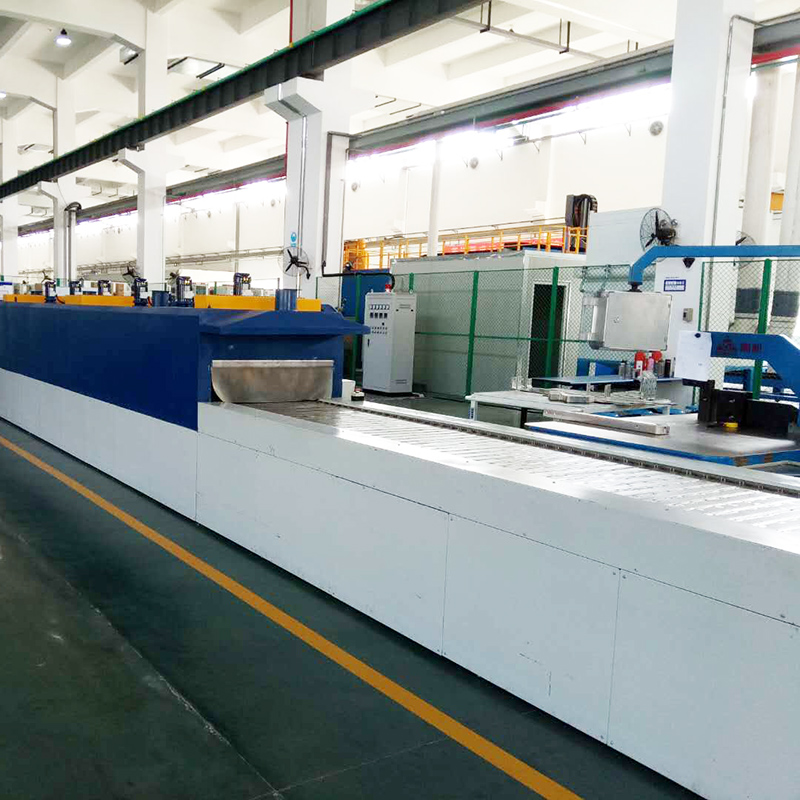

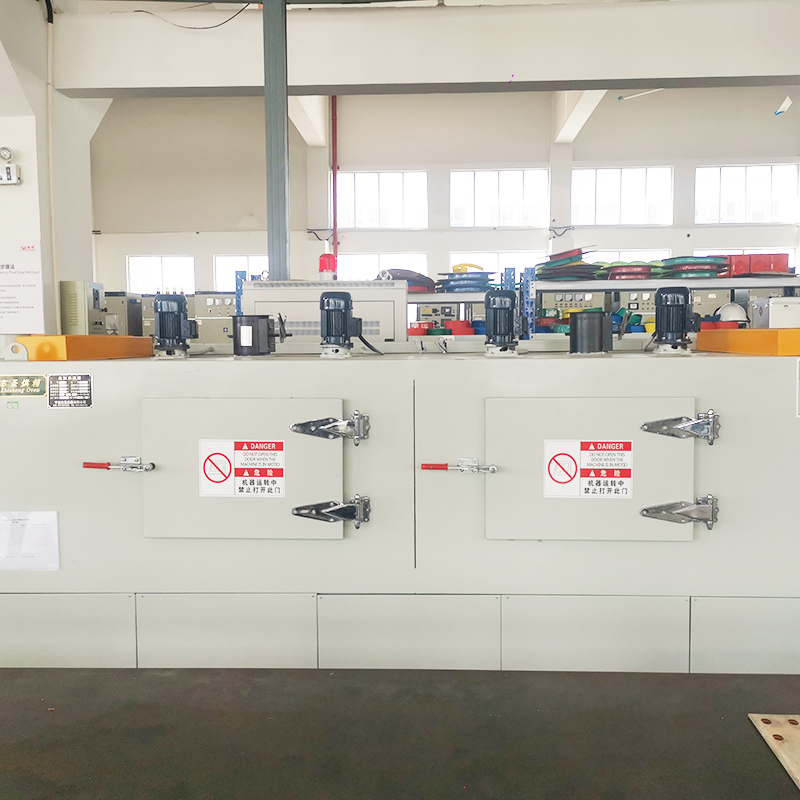

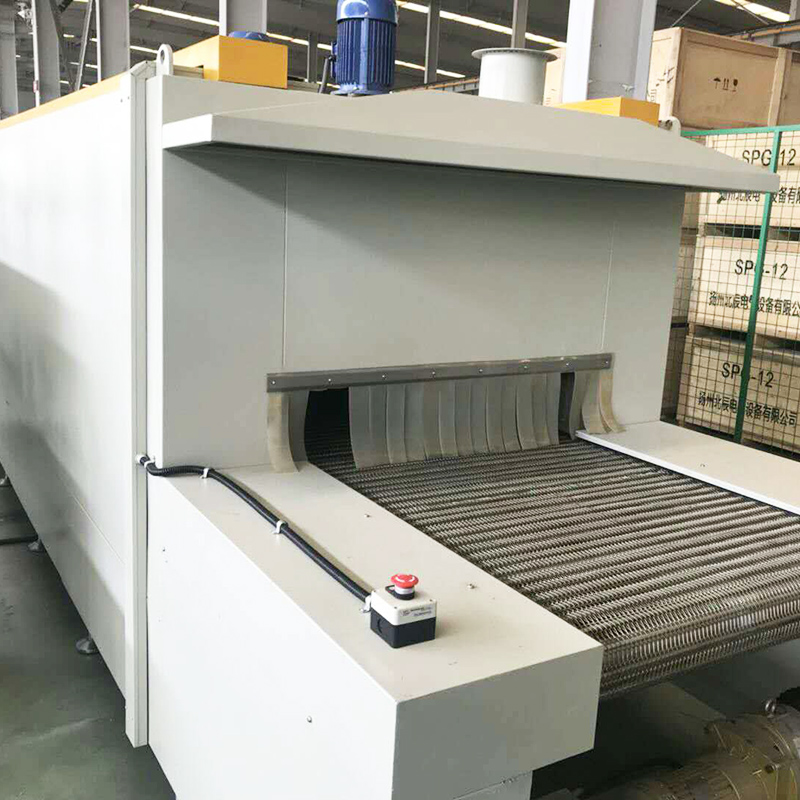

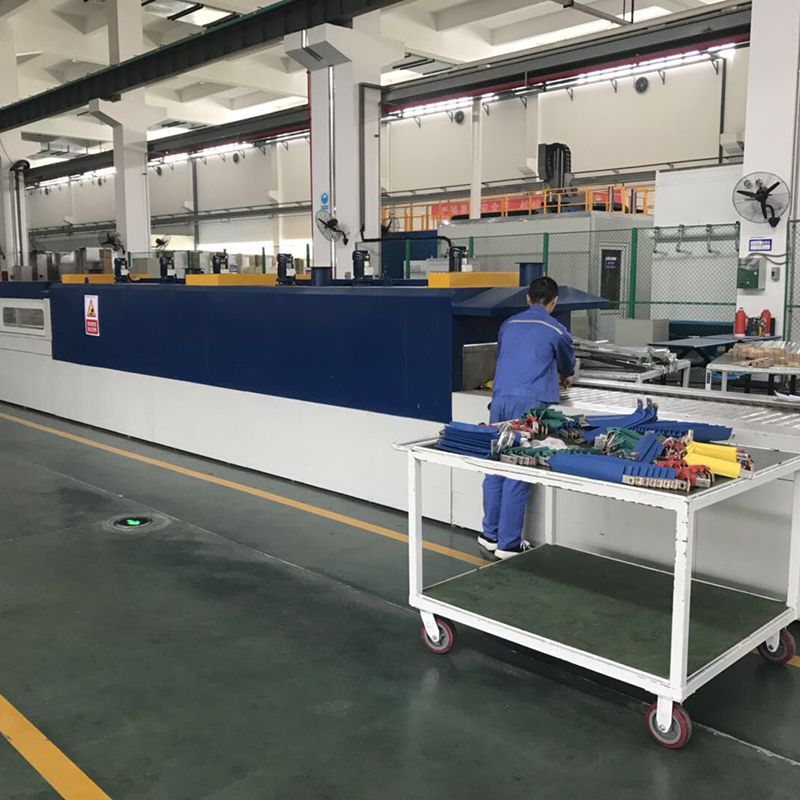

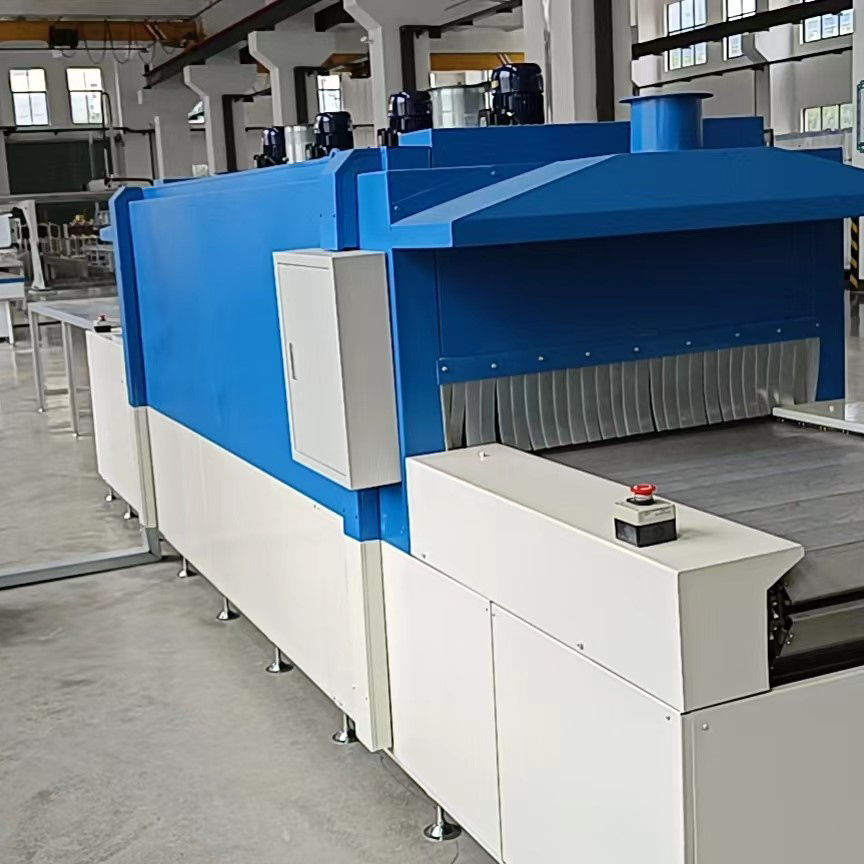

HRS-L Series Continuous Tunnel Furnace (Assembly Line Type)

The equipment features high production efficiency, simple operation, safe and reliable performance, and ensures uniform and smooth heat shrink results.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Technical Parameters of HRS-X Series Busbar Heat Shrink Tubing Oven

Parameter	HRS-X1	HRS-X2	HRS-X3	HRS-X4	HRS-X5
Working chamber size (W × D × H)	1000 × 1500 × 1000 mm	1000 × 2200 × 1000 mm	1000 × 3200 × 1000 mm	1000 × 3800 × 1000 mm	1000 × 6200 × 1000 mm
Operating temperature	Ambient – 200 °C	Ambient – 200 °C	Ambient – 200 °C	Ambient – 200 °C	Ambient – 200 °C
Power supply	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz
Heating power	12 kW	18 kW	27 kW	42 kW	60 kW
Temperature uniformity	±2.5%	±2.5%	±2.5%	±2.5%	±2.5%
Temperature fluctuation	±1 °C	±1 °C	±1 °C	±1 °C	±1 °C
Weight	0.8 t	1.2 t	2.5 t	3 t	4.5 t

Notes

· This is a non-standard product and can be customized according to user requirements;

· The HRS-L series continuous tunnel furnace can also be designed and manufactured based on specific production needs.
