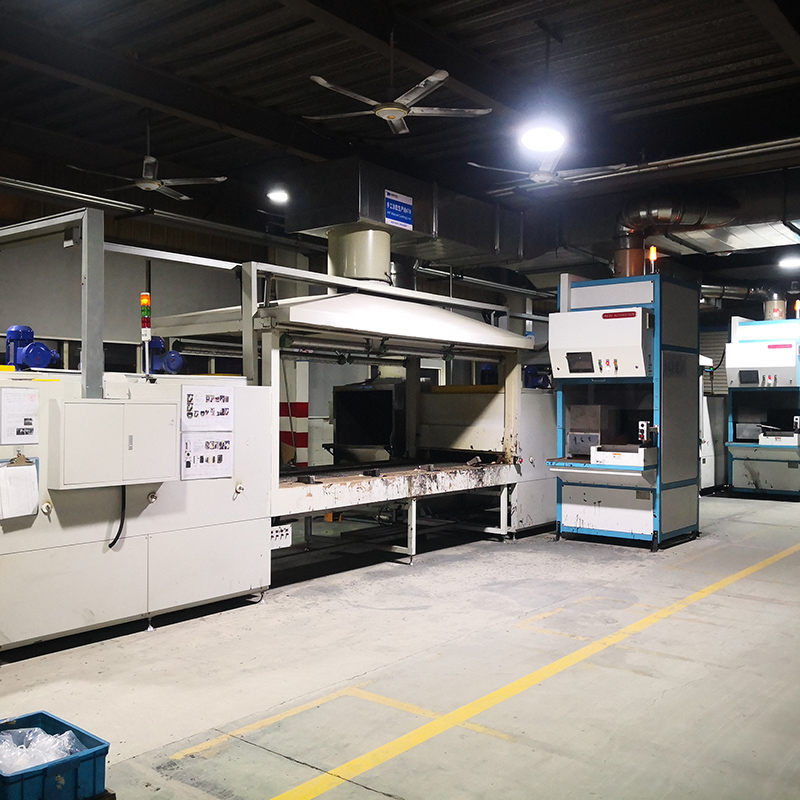

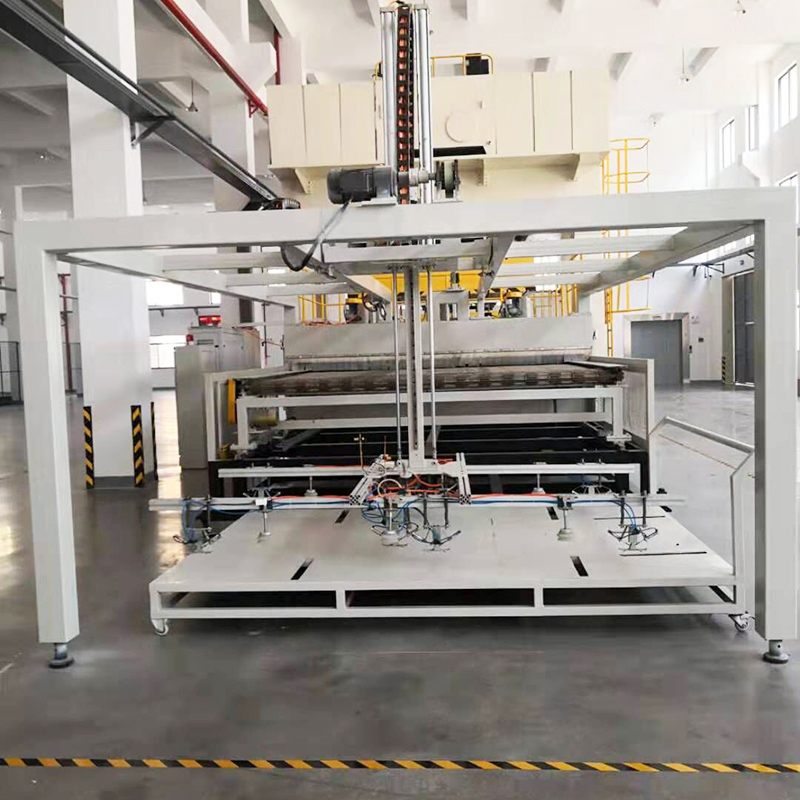

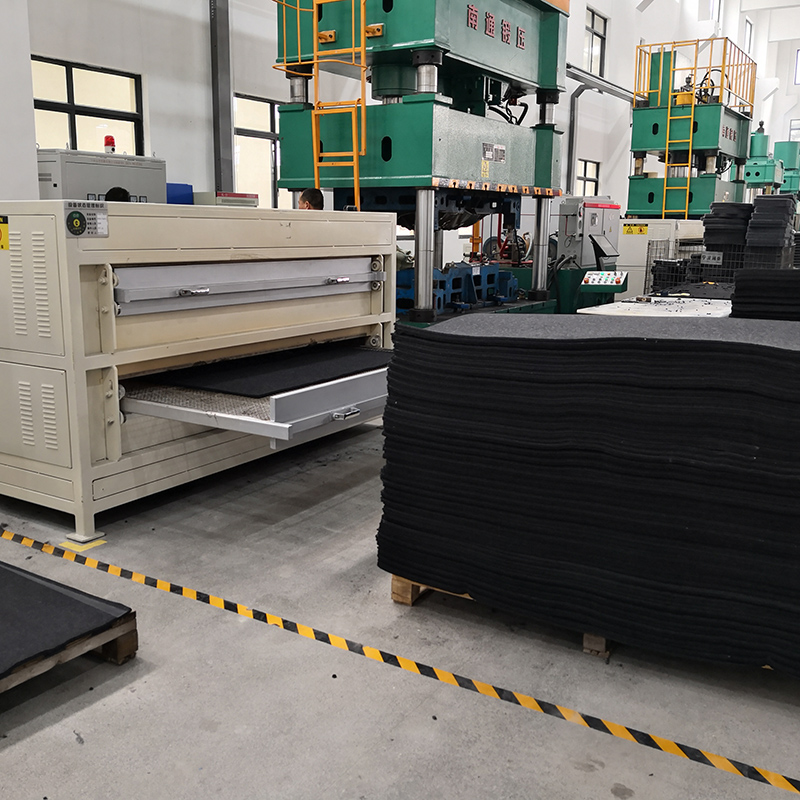

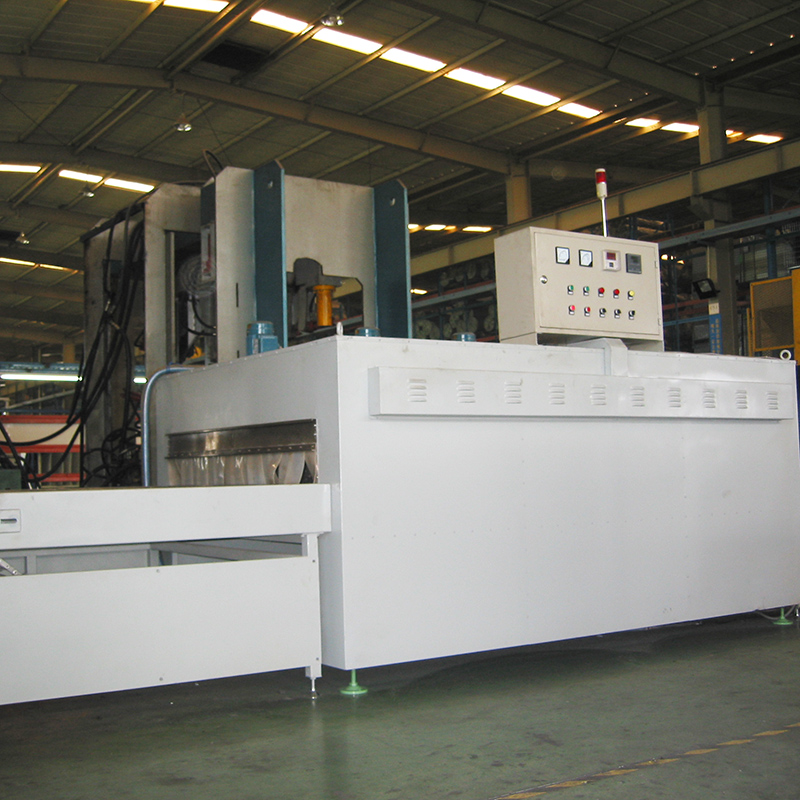

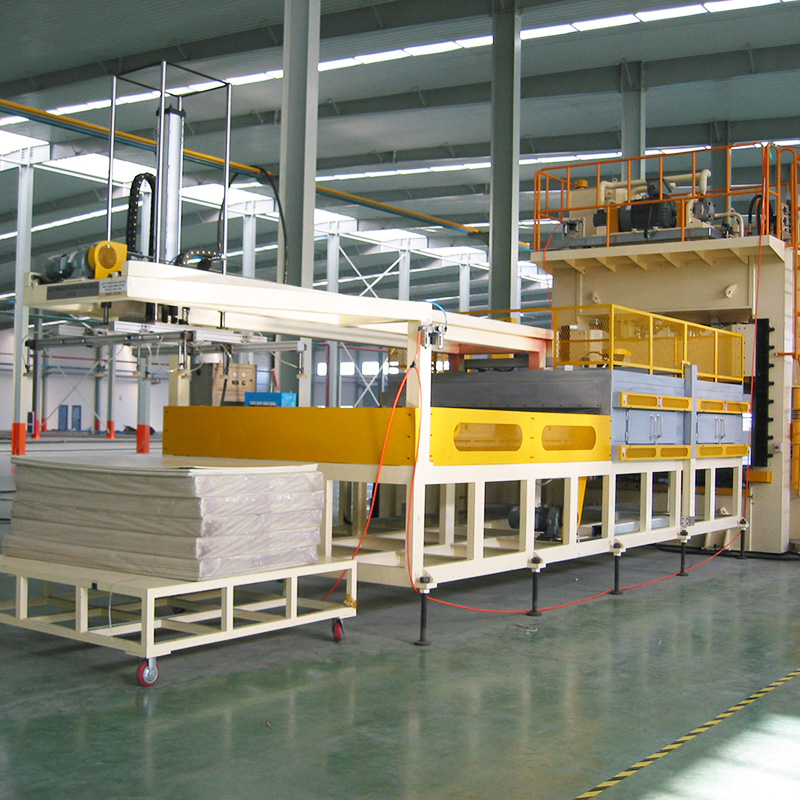

HN Series Automotive Interior Parts Oven

The HN Series oven is designed for the preheating and drying of materials used in automotive interior components prior to thermoforming or compression molding.

Applicable materials include thermoplastic sheets, PU composite panels, EVA sheets, EPDM, XPE, composite PVC, corrugated boards, glass fiber sheets, and PP wood-fiber substrates.

It is widely used for manufacturing automotive interior components such as headliners, dashboards, carpets, and similar products.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features

· Dual-side heating (top and bottom) using far-infrared heating tubes or ceramic heating plates

· Optional control modes: time control or temperature control

· Uniform temperature distribution across multiple zones

· Optimized structural design for stable and reliable operation

· Precise material positioning

· Excellent thermal insulation performance

· High production efficiency

Main Technical Specifications of HN Series Automotive Interior Parts Oven

Parameter	HN-1	HN-2	HN-3	HN-4	HN-5
Chamber Size (W×D×H) (mm)	1820×1400×400	2850×1800×400	1980×2500×400	3570×2090×400	4270×2090×400
Operating Temperature (°C)	RT ~ 350	RT ~ 350	RT ~ 350	RT ~ 350	RT ~ 350
Power Supply	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz	3-phase 380 V / 50 Hz
Heating Power (kW)	49.5	72	76.5	94.5	121.5
Temperature Uniformity (%)	±2.5	±2.5	±2.5	±2.5	±2.5
Temperature Fluctuation (°C)	±1	±1	±1	±1	±1
Weight (t)	1.5	2.5	2.7	3.2	3.5

Note: Non-standard models can be customized and manufactured according to specific customer requirements.

HN Series Automotive Interior Parts Oven
