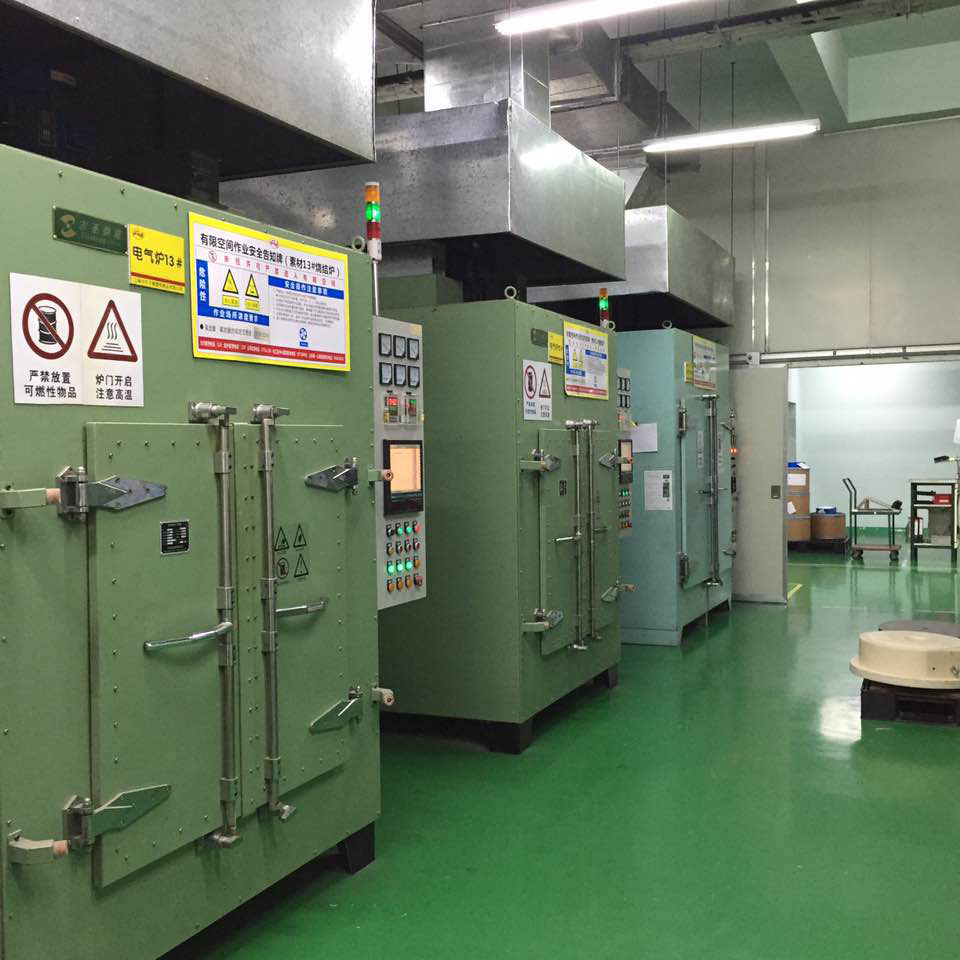

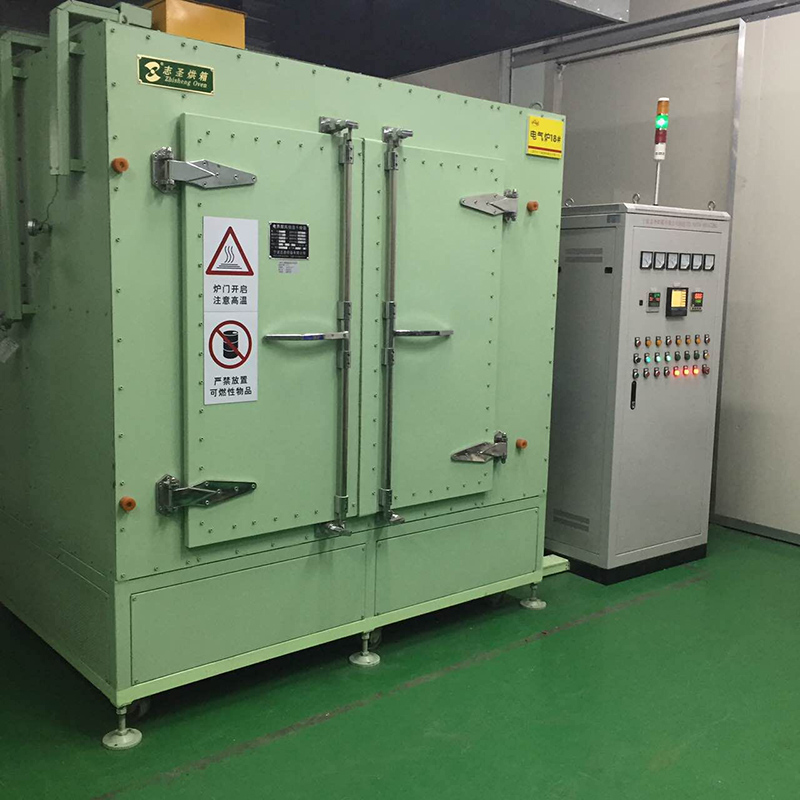

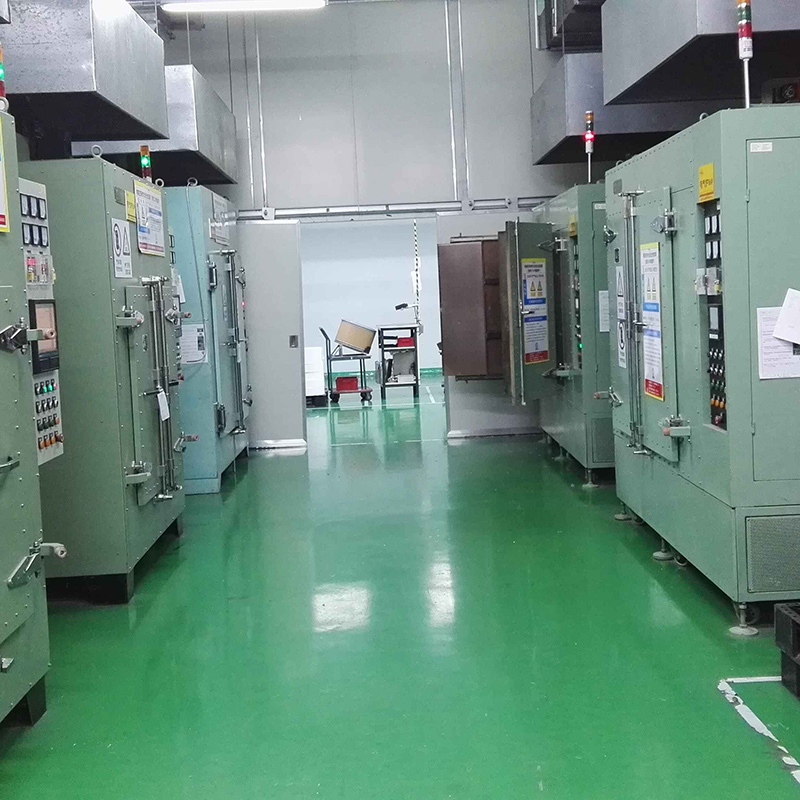

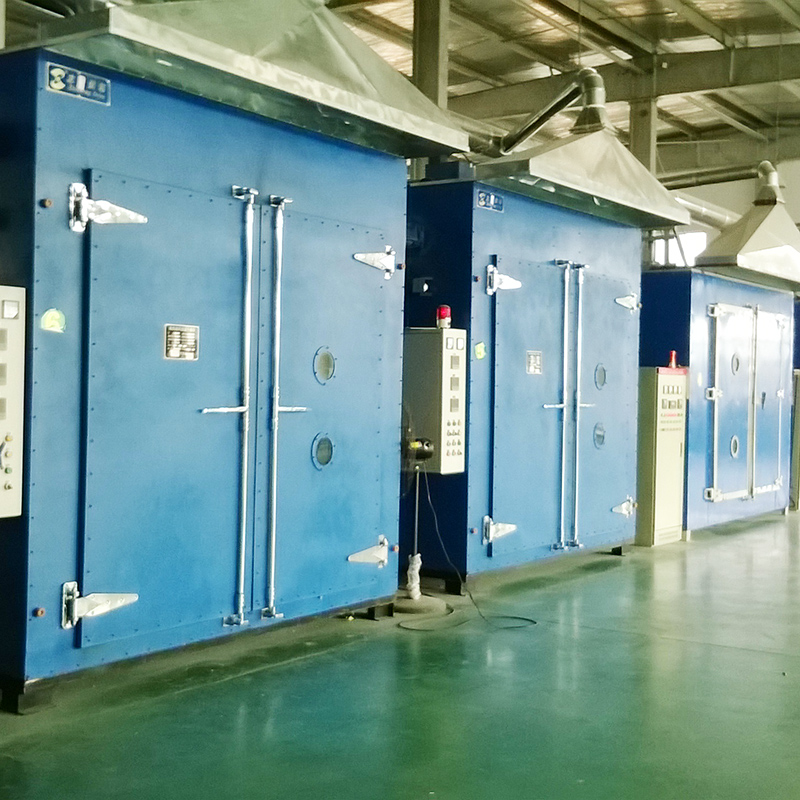

HMP Series PTFE & Sealing Material Sintering Oven

These factors determine the mechanical, physical, and electrical performance of the final product. Improper process control may result in residual stress, deformation, warpage, or cracking.

The HMP series sintering oven is specifically designed for PTFE processing, featuring:

· excellent temperature uniformity

· high level of automation

· stable and reliable operation

It is an ideal solution for high-quality PTFE sintering applications.

Performance & Features

1. High Temperature Uniformity

Optional imported 6-point or 12-point high-precision temperature monitoring and recording system, enabling real-time display and recording of temperature distribution throughout the oven.

2. Advanced Temperature Control System

· Intelligent programmable temperature controller

· Multi-stage process programming

· PID auto-tuning

· SSR (solid-state relay) with cycle control for precise power regulation

For tunnel-type furnaces:

· Multi-zone temperature control ensures superior uniformity

· Controlled cooling according to process curves

· Automatic air inlet damper adjustment

· Fully automatic exhaust air valve

All operations are managed via centralized PLC control, enabling a fully automated sintering process.

3. Stable and Reliable Operation

All key components, including:

· blower motors

· impellers

· heating elements

are manufactured from high-temperature-resistant materials, ensuring:

· continuous 24-hour operation

· low noise

· minimal vibration

· long service life

4. Easy Maintenance

Modular and standardized design of key components (fans, heaters, etc.) provides:

· accurate fault diagnosis

· convenient maintenance

· reduced downtime and cost

5. Specialized Design for PTFE Applications

This oven is specifically engineered to meet the extremely high temperature uniformity requirements of PTFE sintering.

It is widely used for:

· pre-sintering

· sintering

· shaping

· cross-linking

of PTFE materials, including:

· rods

· sheets

· tubes

· powders

Main Technical Parameters

Note:
Non-standard equipment can be custom-designed and manufactured according to specific customer requirements.
