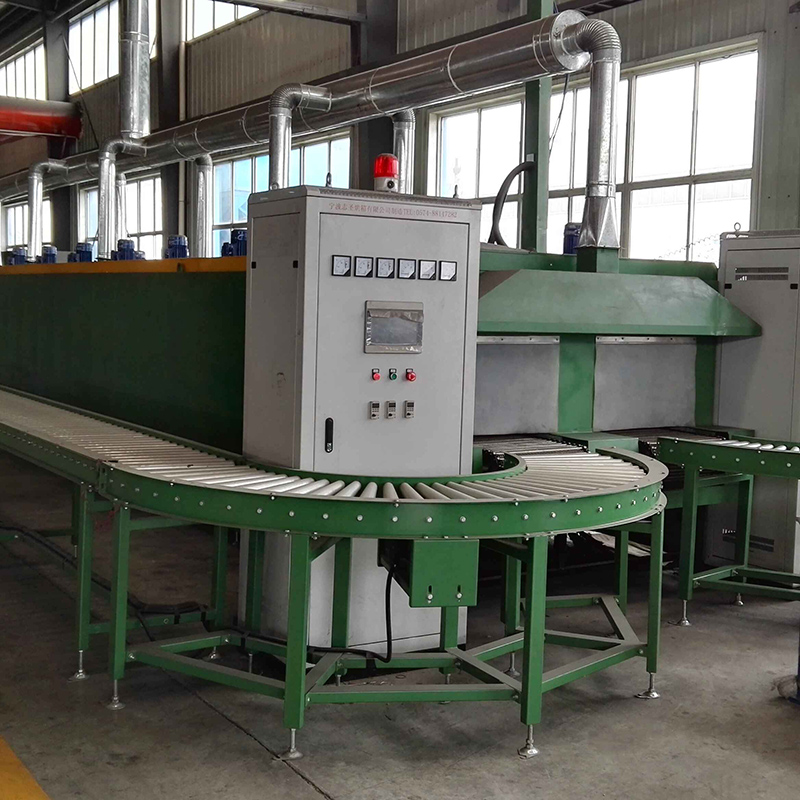

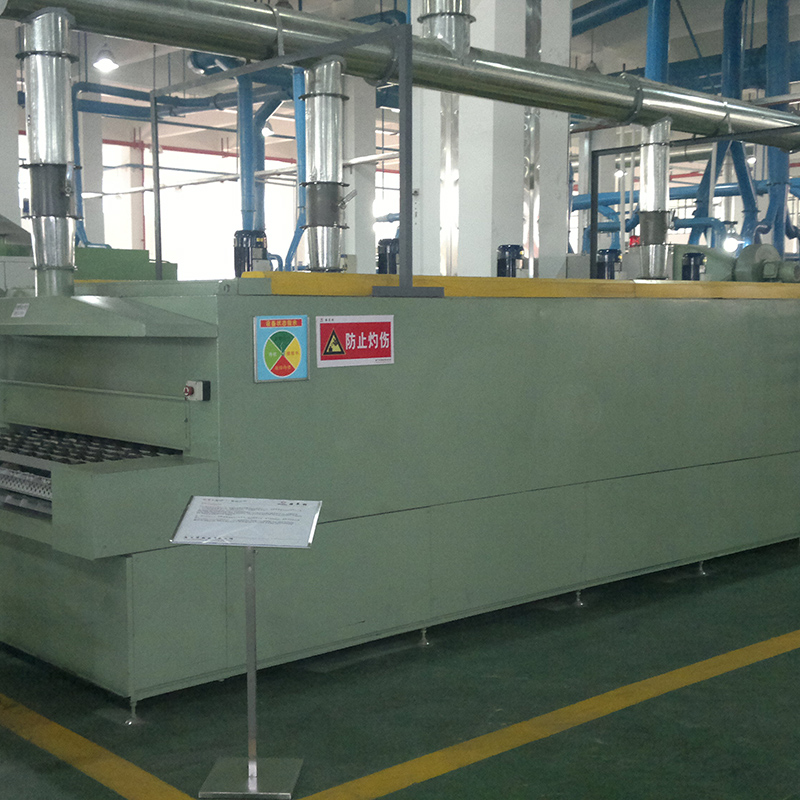

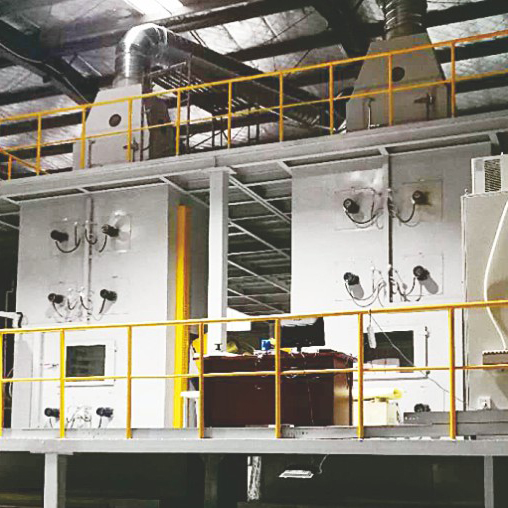

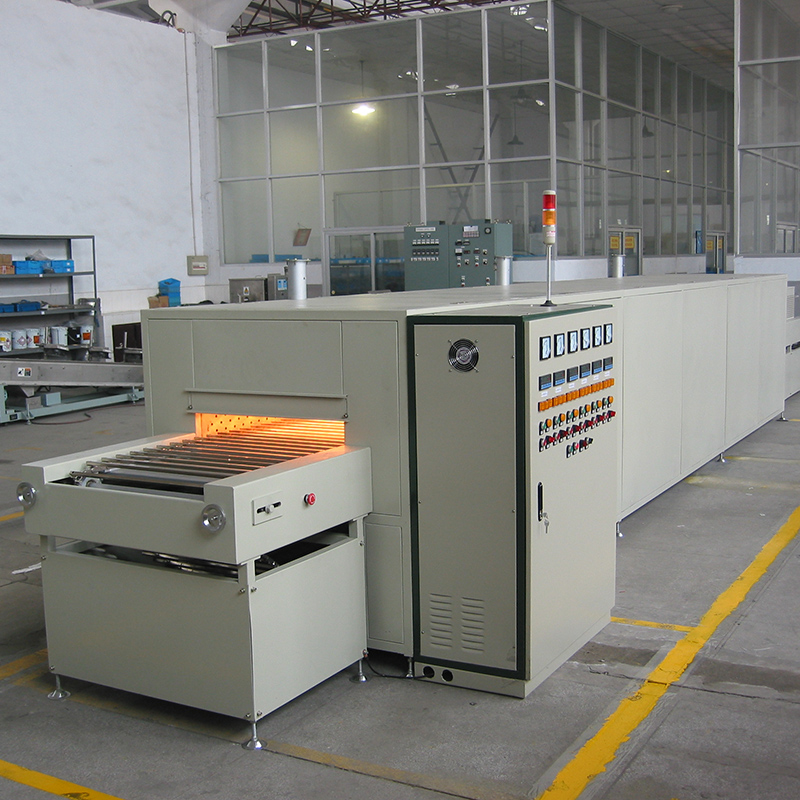

HM-Z Series Friction Material Tunnel Oven

The HM-Z Series Friction Material Tunnel Oven is designed for heat treatment of disc brake pads and bonding and curing of drum brake linings.

Developed as an upgraded version of conventional equipment, this series incorporates advanced design and manufacturing technologies. Its performance meets or exceeds international advanced standards, making it an ideal solution for friction material manufacturers.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Safety

Low surface-load electric heating elements are used, with surface temperatures maintained below 350°C, effectively reducing the risk of combustion and explosion.

Energy Efficiency

High-quality aluminum silicate insulation materials ensure that the external surface temperature does not exceed ambient temperature +10°C, significantly improving energy efficiency.

Quality Assurance

Temperature uniformity is controlled within ±5°C, ensuring stable and consistent product quality.

Control System

Equipped with advanced control options, including:

· Distributed Control System (DCS)

· PLC-based control with touchscreen interface

· Paperless data recording

Heating Methods

· Electric heating

· Natural gas heating

Main Technical Parameters

Parameter	Disc Brake Pad Heat Treatment Oven	Drum Brake Lining Bonding & Curing Oven
Working chamber dimensions (W×D×H) mm	1000×7000×300	1400×9000×1850
Operating temperature (°C)	Ambient – 150	Ambient – 250
Output	N/A (customized)	N/A (customized)
Power supply (V/Hz)	3-phase 380V / 50Hz	3-phase 380V / 50Hz
Heating power (kW)	50	72
Temperature uniformity	±2.5%	±2.5%
Temperature fluctuation (°C)	±1	±1

Note:
Non-standard equipment can be custom-designed and manufactured according to specific customer requirements.
