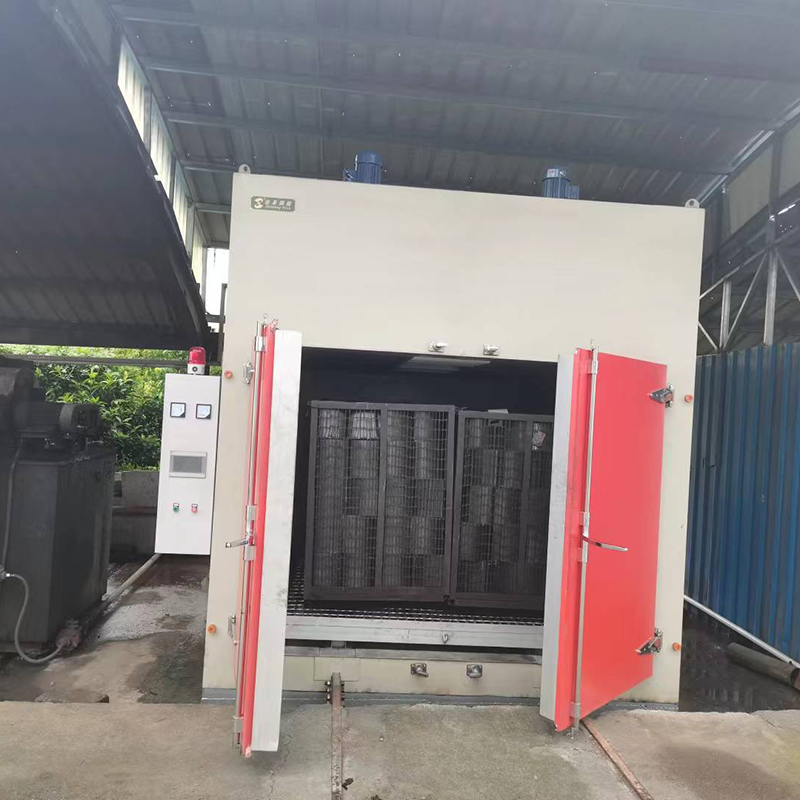

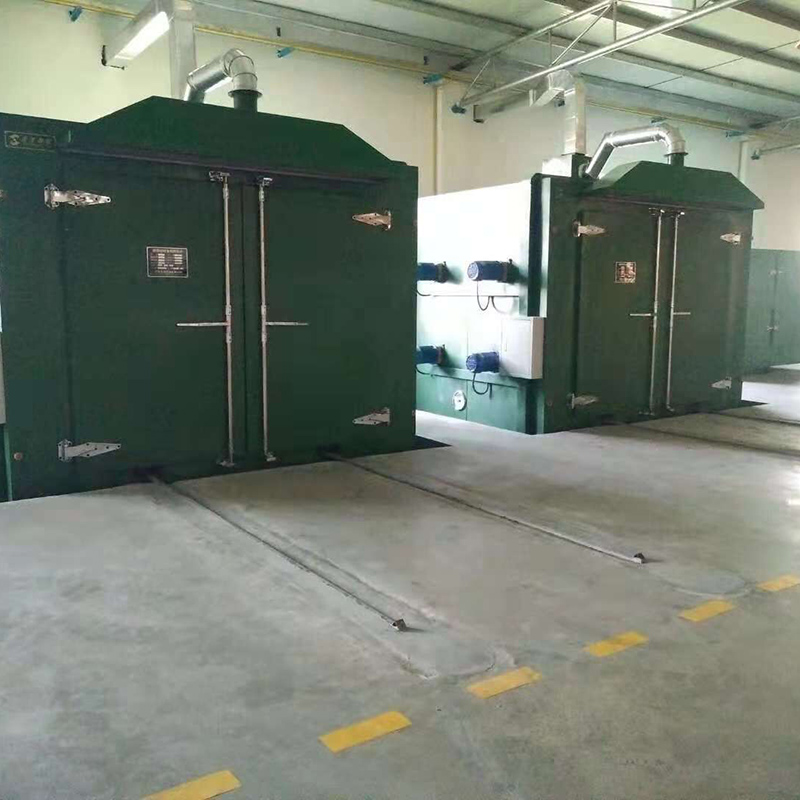

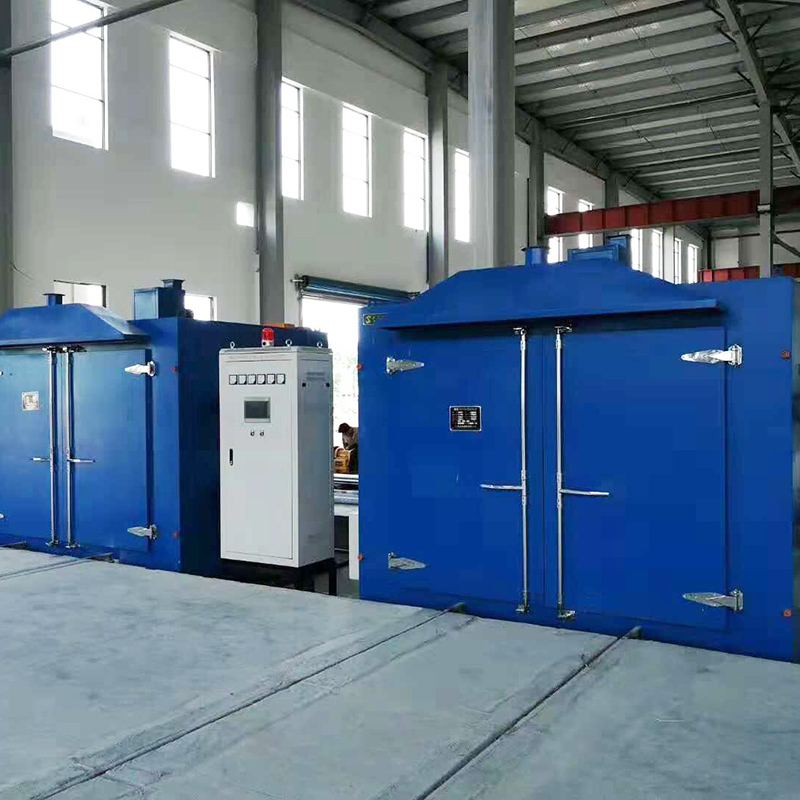

HM-L_V_D Series Friction Material Curing Oven

The HM-L/V/D series friction material curing ovens are specialized production equipment developed based on the processing characteristics of disc brake pads, drum brake linings, and clutch facings, incorporating advanced technologies from both domestic and international markets.
According to different air circulation modes, the series is available in:

Horizontal air supply curing ovens (HM-L)
Vertical air supply curing ovens (HM-V)
Dual-side air supply curing ovens (HM-D)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Users can select appropriate air circulation configurations based on product types and loading arrangements, ensuring excellent temperature uniformity and optimal curing performance. These ovens meet the standards of first-class friction material curing equipment both domestically and internationally.

Safety

· Low-load wound electric heating elements with surface temperature below 350°C, effectively eliminating risks of combustion and explosion

· High-volume forced ventilation system ensures that the concentration of hazardous gases inside the oven remains within a safe range

· Safety pressure relief door minimizes potential losses in case of unexpected incidents

Energy Efficiency

· High-quality aluminum silicate wool insulation ensures that the outer surface temperature does not exceed ambient temperature +10°C

Quality Assurance

· Temperature uniformity controlled within ±3°C, providing reliable assurance for consistent product quality

Control System

· Configuration software

· Distributed Control System (DCS)

· PLC touch screen control

· Paperless data recording

Heating Method

· Electric heating

· Natural gas heating

User-Friendly Design

· Manual trolley system

· Automatic lifting door

· Wireless remote control operation

Main Technical Specifications

Parameter	HM-2L / HM-2V	HM-3L / HM-3V	HM-4V / HM-4D	HM-5V / HM-5D
Working chamber size (mm, W × D × H)	1200 × 1200 × 1200	1300 × 1200 × 1500	2000 × 1800 × 1500	1800 × 3000 × 1500
Operating temperature (°C)	Ambient to 250	Ambient to 250	Ambient to 250	Ambient to 250
Power supply	3-phase, 380V / 50Hz	3-phase, 380V / 50Hz	3-phase, 380V / 50Hz	3-phase, 380V / 50Hz
Heating power (kW)	15 / 27	22.5 / 45	36 / 54	45 / 72
Temperature uniformity	±2.5%	±2.5%	±2.5%	±2.5%
Temperature fluctuation (°C)	±1	±1	±1	±1

Note:

Non-standard models can be custom-designed and manufactured according to specific customer requirements.
