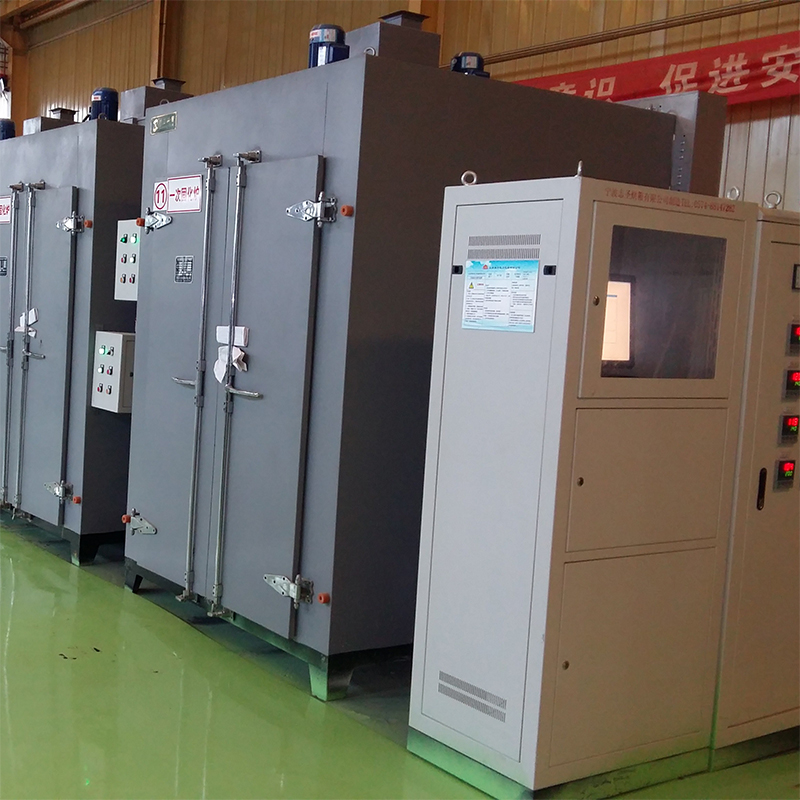

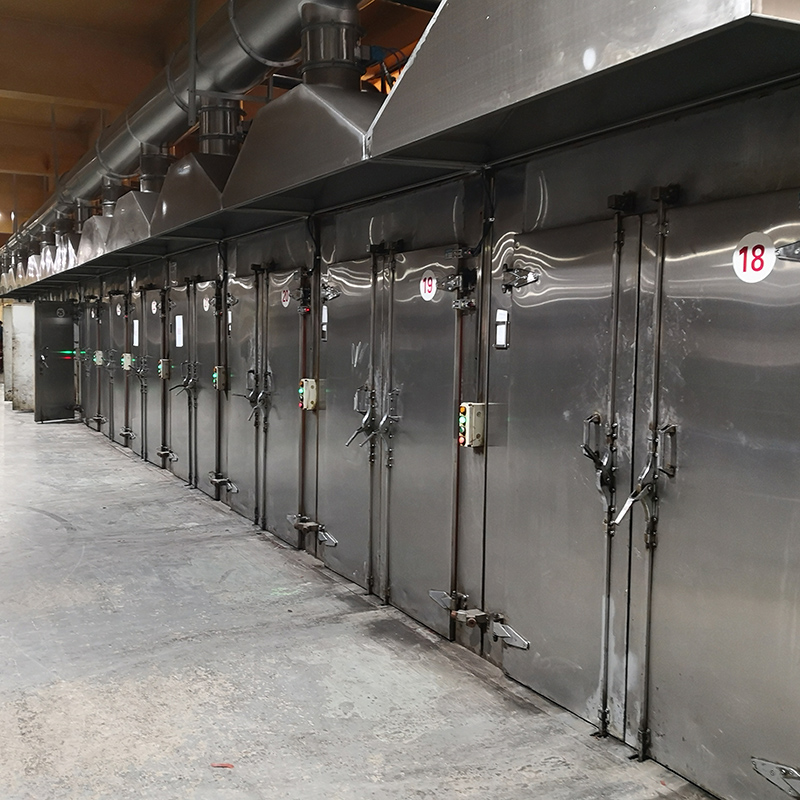

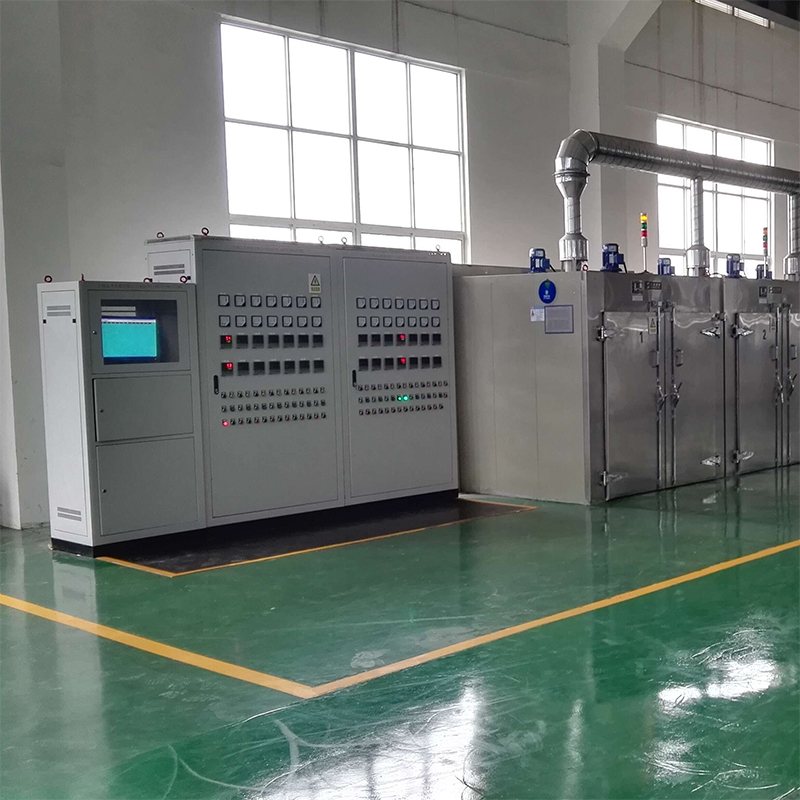

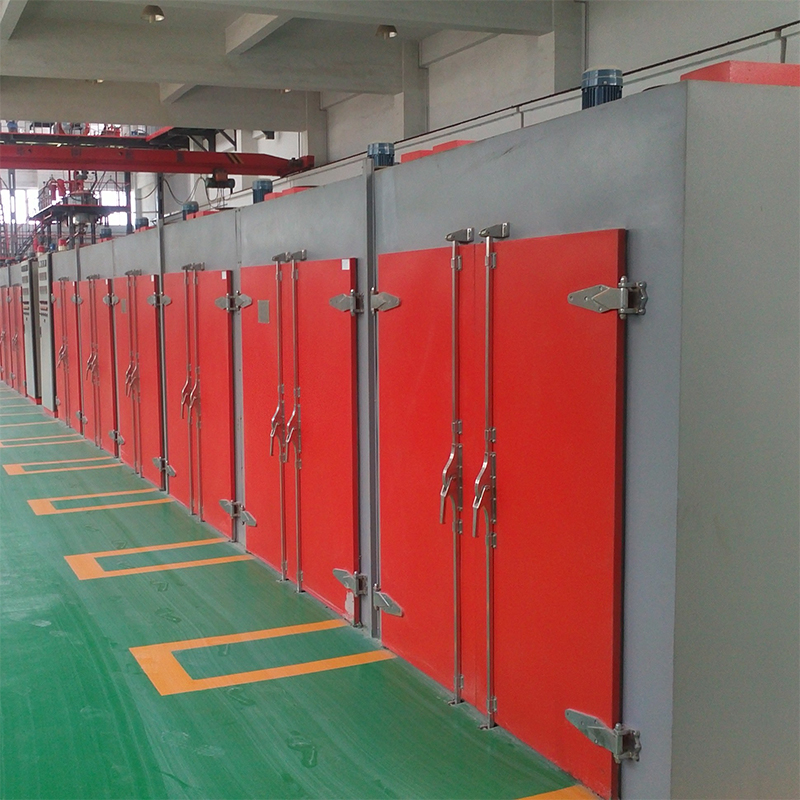

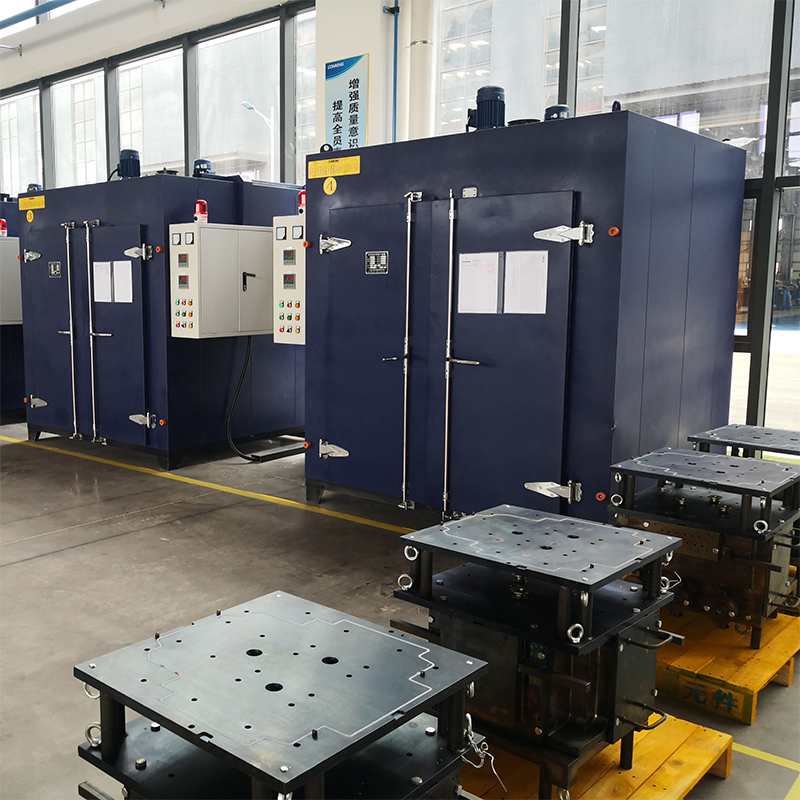

HG Series Instrument Transformer-Insulation Parts Curing Oven

The HG Series Instrument Transformer / Insulation Parts Curing Oven is designed for epoxy resin curing of instrument transformers, as well as preheating (pre-drying) of coils and molds.

This series can be configured as two or more integrated units, featuring a compact structure and an aesthetically pleasing design. The equipment provides excellent temperature uniformity and adopts a unique hot air circulation system, making it suitable for various curing processes of instrument transformers.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Performance Features

1. An optimized hot air circulation mode can be selected based on product loading methods, ensuring more uniform temperature distribution and improved curing (drying) performance.

2. Advanced electrical control system with an intelligent programmable temperature controller featuring PID auto-tuning. Various curing profiles can be set according to different process requirements, ensuring easy operation and reliable performance.

3. High-quality aluminum silicate insulation with low thermal conductivity, combined with a unique insulation filling structure, ensures excellent thermal insulation performance and energy efficiency.

4. Computerized management software enables centralized monitoring and control of multiple curing ovens, improving energy efficiency and overall production productivity.

Main Technical Parameters of HG Series Instrument Transformer / Insulation Parts Curing Oven

Parameter	HG-1	HG-2	HG-3	HG-4	HG-5
Dimensions of working chamber（width×depth×height） mm	550×450×550	850×800×1000	1500×1000×1500	1900×800×1500	1700×1800×2000
Operating temperature（℃）	Indoor temperature—200	Indoor temperature—200	Indoor temperature—200	Indoor temperature—200	Indoor temperature—200
Operating voltage/ frequency（V/ Hz）	3—380/50	3—380/50	3—380/50	3—380/50	3—380/50
Heating power（kw）	4	10.5	18	21	36
Temperature uniformity(%)	±2.5	±2.5	±2.5	±2.5	±2.5
Temperature fluctuation（℃）	±1	±1	±1	±1	±1
Note: The product and non-standard, and can be designed and manufactured in accordance with the user’s requirements.
