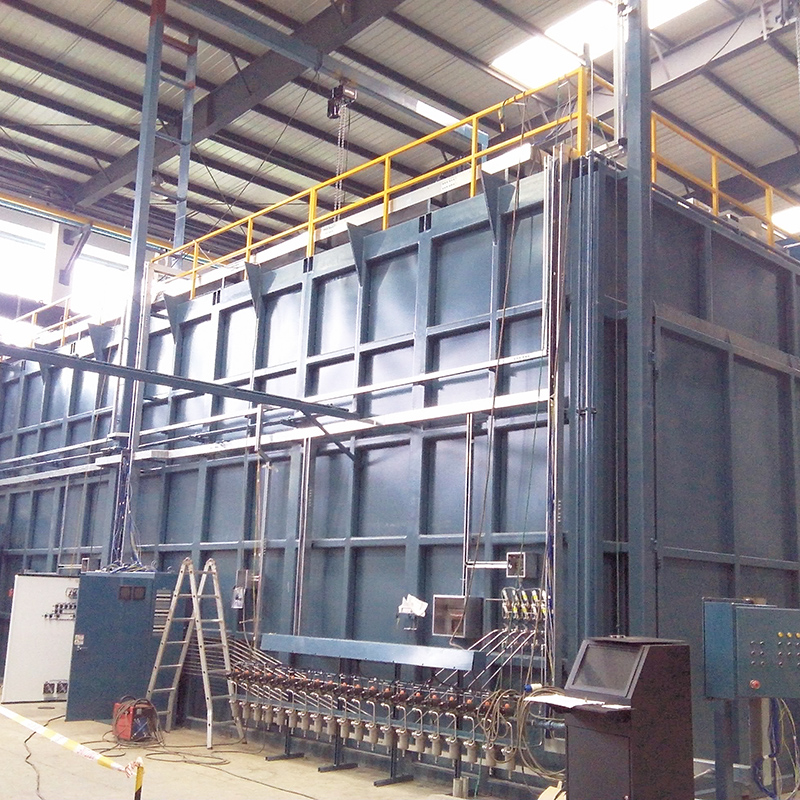

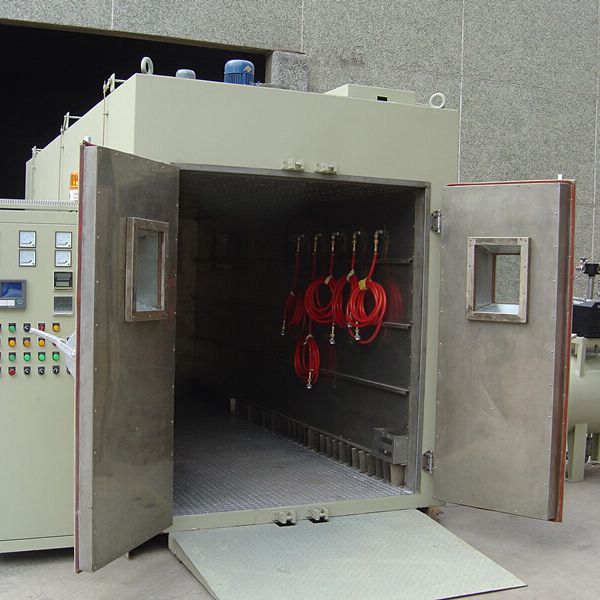

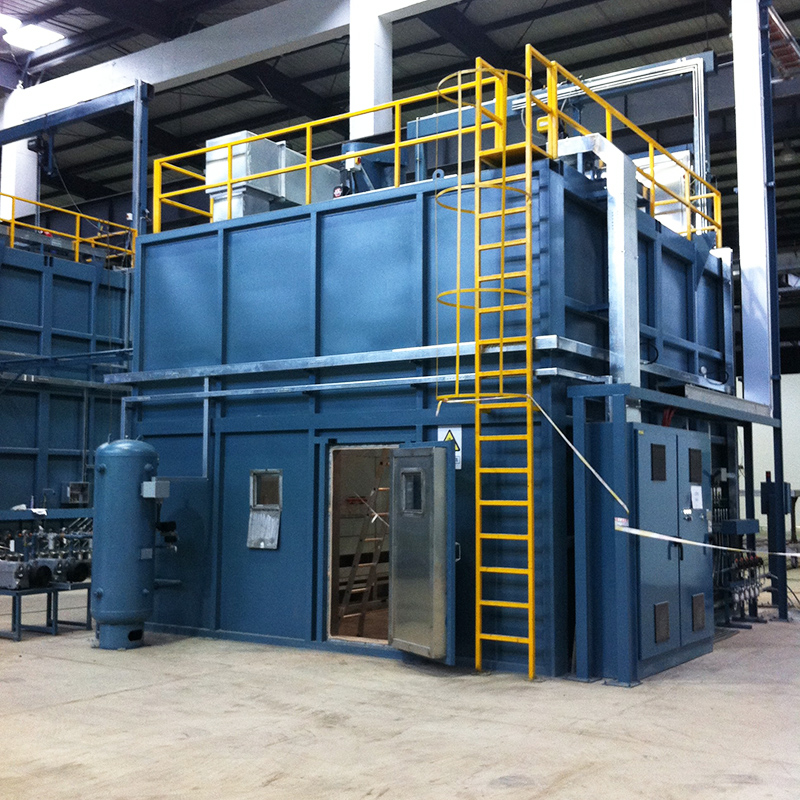

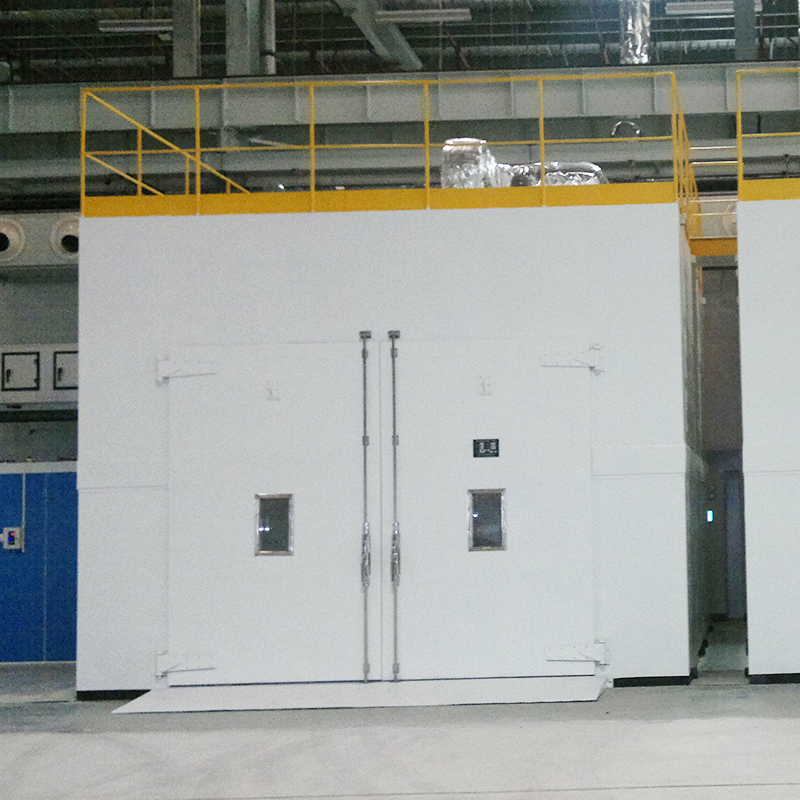

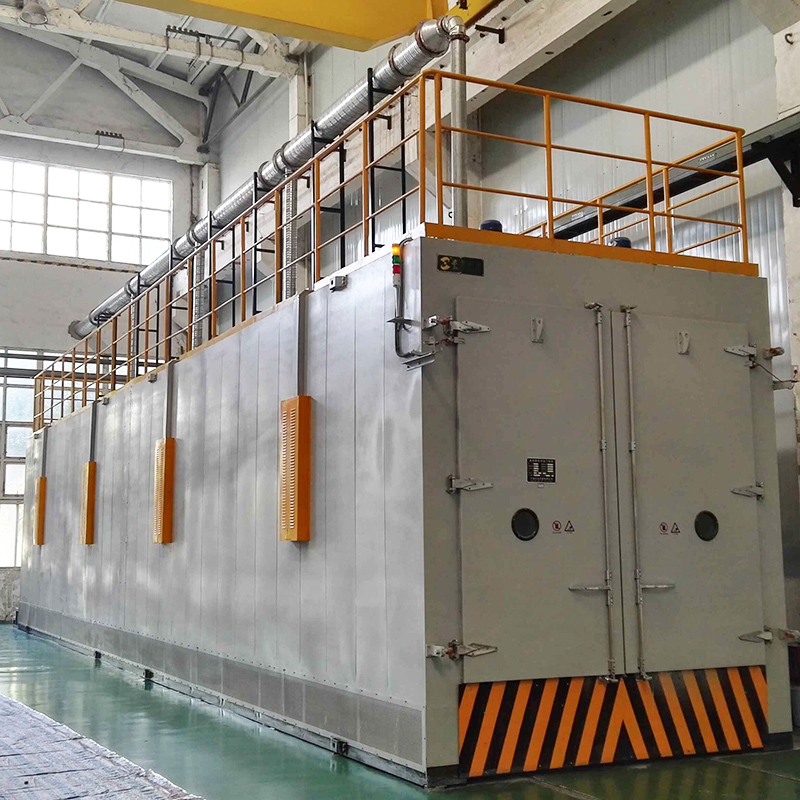

HF Series Composite Material Curing Oven (Curing Chamber)

The HF Series Curing Oven is specifically designed for composite material curing under controlled temperature and optional vacuum conditions.

Zhisheng provides customized curing solutions tailored to different materials, process requirements, and production scales.

Performance & Features

Safety

· Low surface-load finned electric heating elements, with surface temperature below 350°C, reducing the risk of combustion and explosion

· High-volume forced ventilation ensures hazardous gas concentration remains within safe limits

· Exhaust pressure monitoring and alarm system; heating automatically stops in case of abnormal exhaust conditions

Energy Efficiency

· High-efficiency heat exchanger for waste heat recovery

· High-quality aluminum silicate insulation ensures that surface temperature does not exceed ambient temperature +10°C

Quality Assurance

· Temperature uniformity within ±3°C, ensuring consistent product quality

· Integrated workpiece rotation system for uniform heating and curing

Control System

· SCADA system (configuration software)

· Distributed Control System (DCS)

· PLC-based control with touchscreen interface

· Paperless data recording

Heating Methods

· Electric heating

· Natural gas heating

Optional / Auxiliary Features

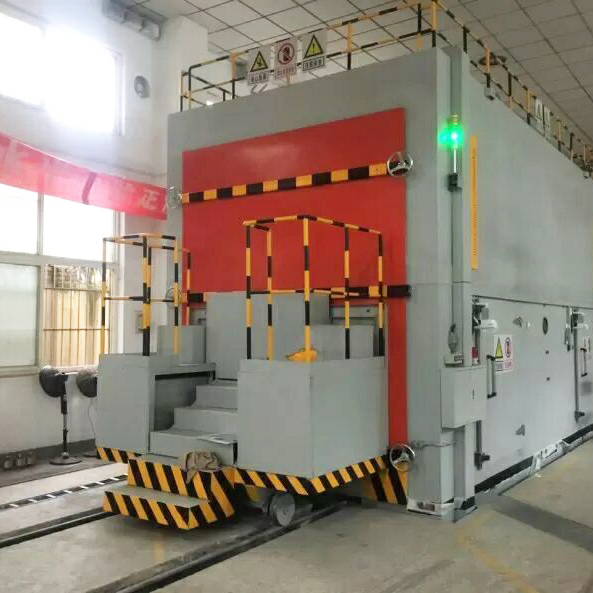

· Motorized trolley system

· Automatic vertical lift door

· Wireless remote control operation

Main Technical Parameters
