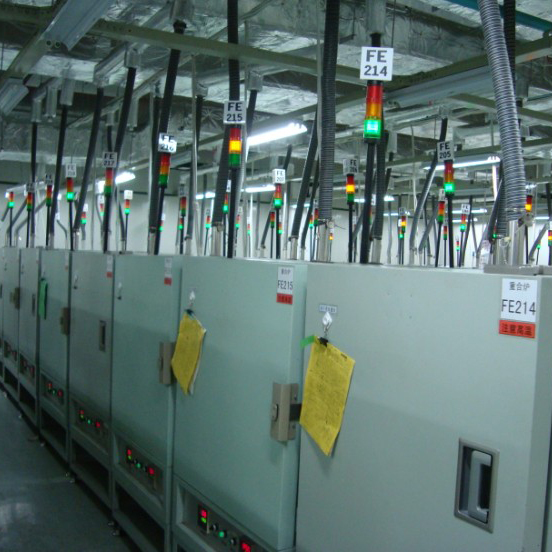

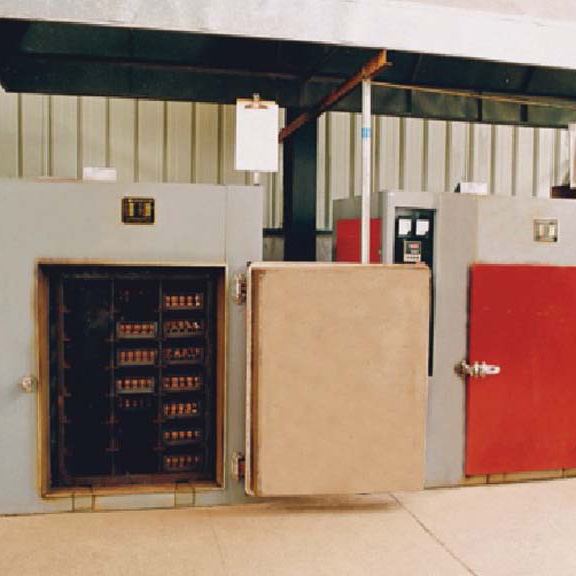

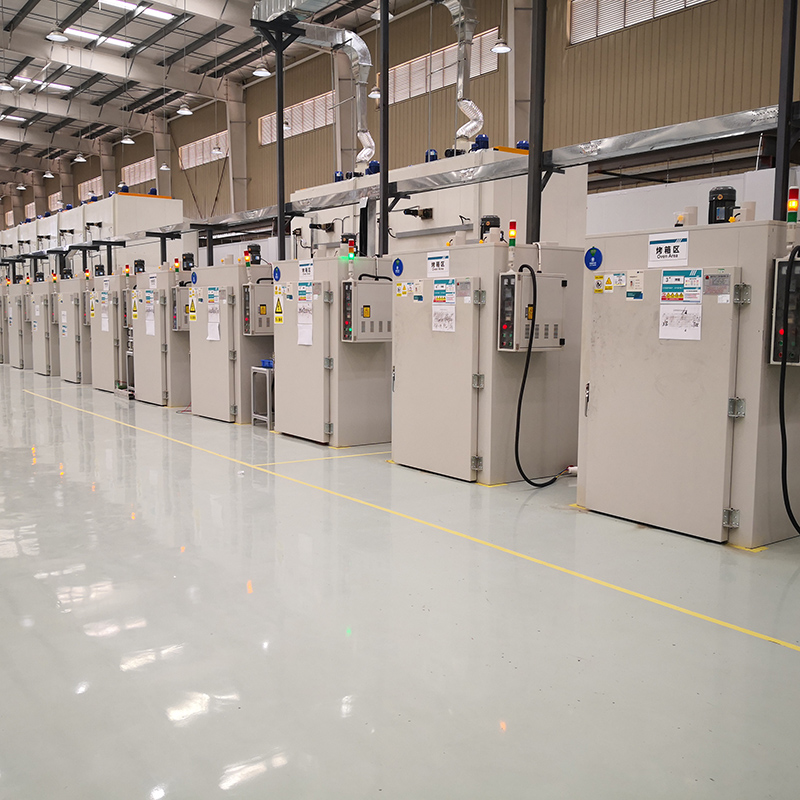

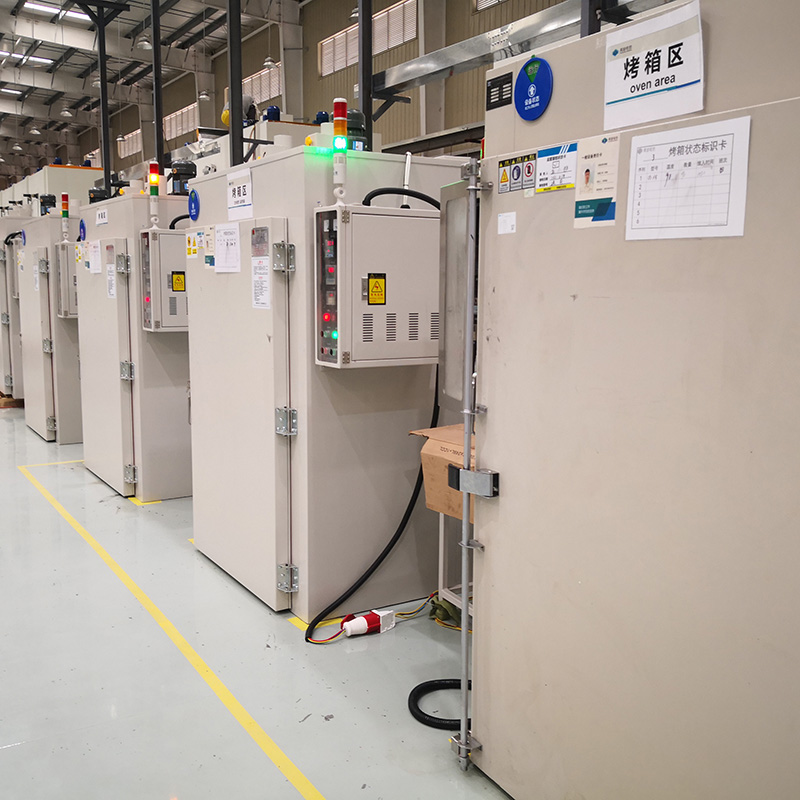

HC Series Capacitor Oven

The oven is designed with a unique built-in air circulation duct, ensuring excellent temperature uniformity throughout the chamber, significantly superior to conventional drying ovens.

High-quality, high-density aluminum silicate fiber insulation with low thermal conductivity is adopted, providing outstanding energy efficiency.

Availability:

Quantity:



Inquire Add to Basket

Product Description

The equipment can be customized as a vacuum drying oven or nitrogen-purged drying oven according to specific process requirements.

Finned electric heating tubes are used as heating elements, featuring low sheath temperature, excellent oxidation resistance, and long service life.

The system is equipped with intelligent programmable temperature control, PID auto-tuning, over-temperature protection, and an audible and visual alarm system.

This series is suitable for the drying and curing of electronic capacitors and power capacitors.

Main Technical Parameters of HC Series Capacitor Oven

Parameter	HC-1	HC-2	HC-3	HC-4
Chamber dimensions (W × D × H) mm	650×650×650	850×800×1000	1300×1200×1500	2000×1100×1700
Operating temperature (℃)	Ambient ~ 200℃	Ambient ~ 200℃	Ambient ~ 200℃	Ambient ~ 200℃
Temperature uniformity (℃)	±3℃	±3℃	±3℃	±3℃
Temperature fluctuation (℃)	±1℃	±1℃	±1℃	±1℃
Heating power (kW)	6	10	22	32
