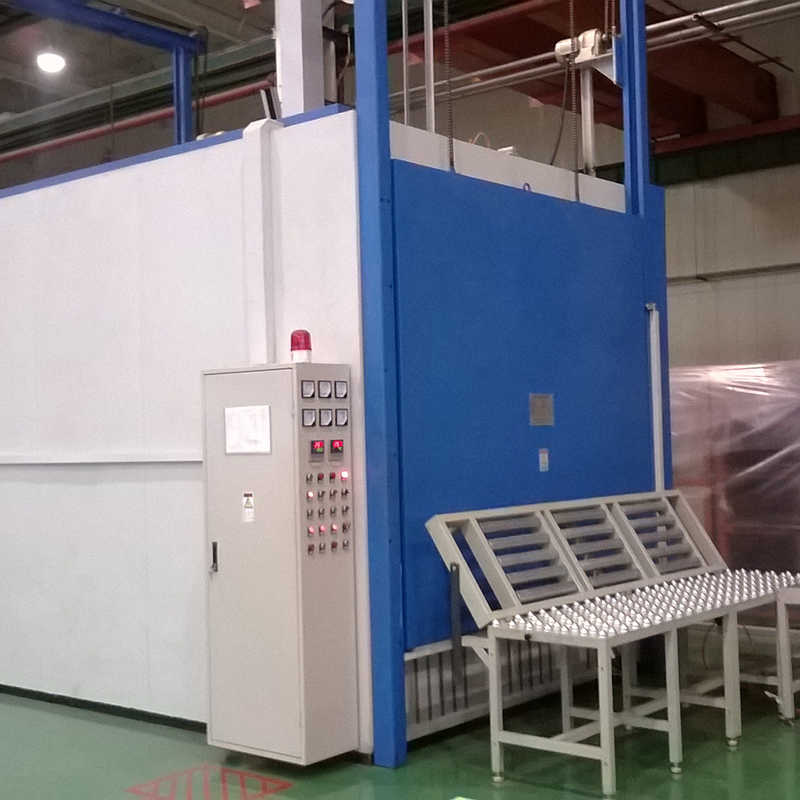

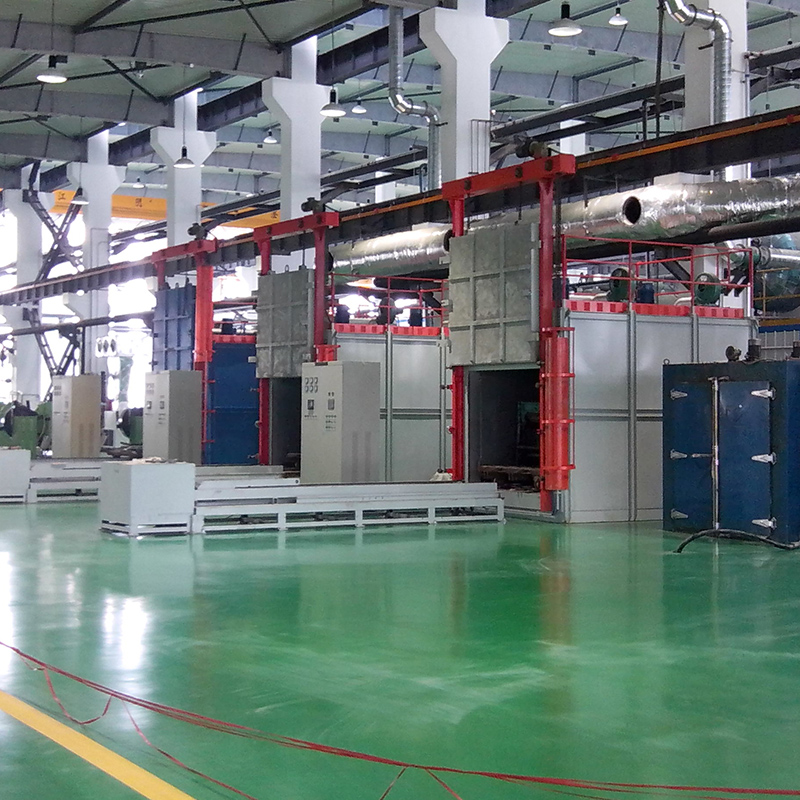

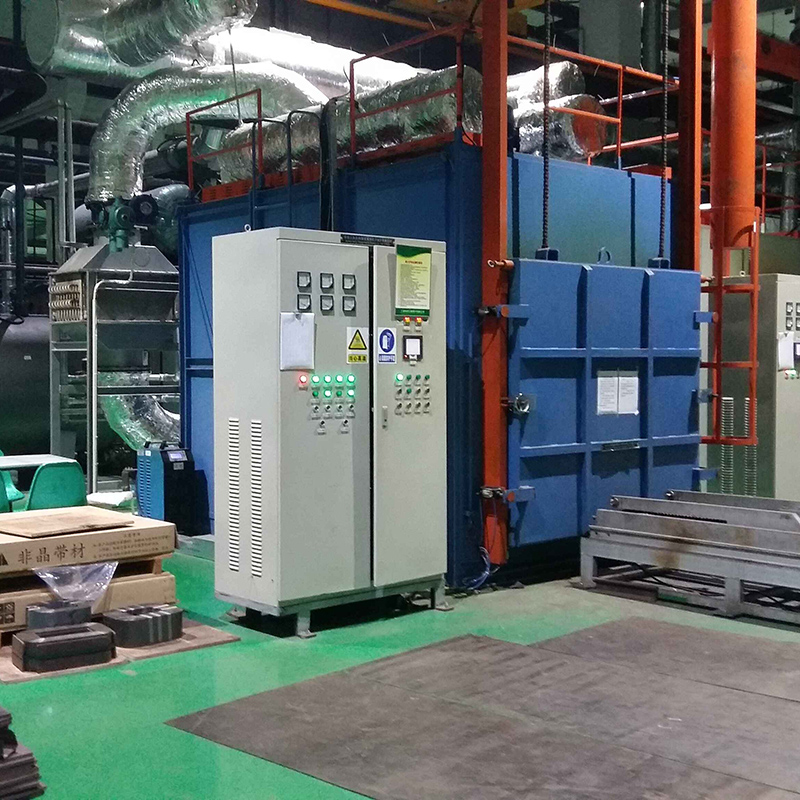

HB Series Amorphous Alloy Transformer Core Annealing Oven

Amorphous alloy transformers offer significant advantages such as low no-load loss, energy efficiency, and environmental friendliness, aligning with national policies on energy conservation and environmental protection.

The HB series amorphous alloy transformer core annealing oven is designed and manufactured to achieve an annealing qualification rate exceeding 98%. It features user-friendly operation and has been widely recognized by customers in the industry.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features

1. Multiple over-temperature protection systems ensure safe and reliable operation of the annealing oven.

2. Optimized hot air circulation can be configured according to product loading conditions, ensuring uniform temperature distribution and enhanced annealing performance.

3. Advanced electrical control system equipped with programmable temperature controllers (with PID auto-tuning) and solid-state relay power regulation, allowing flexible setting of temperature profiles for different processes, with easy operation and high reliability.

4. Customized power busbar configurations are designed according to production capacity and product arrangement, ensuring a high qualification rate of annealed products.

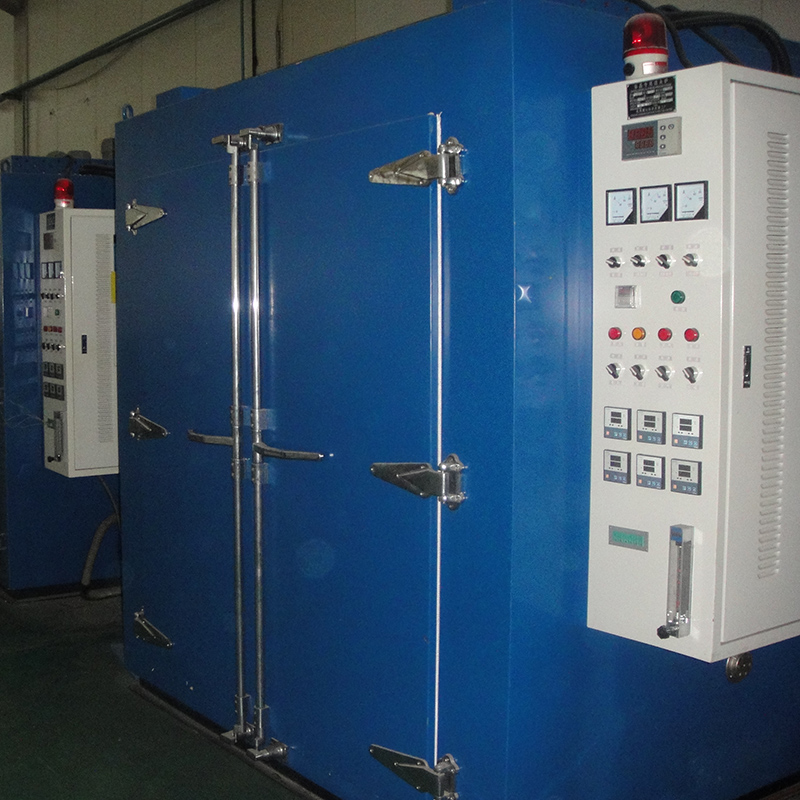

5. Standard configuration includes: manual double doors and on-site power connection system.

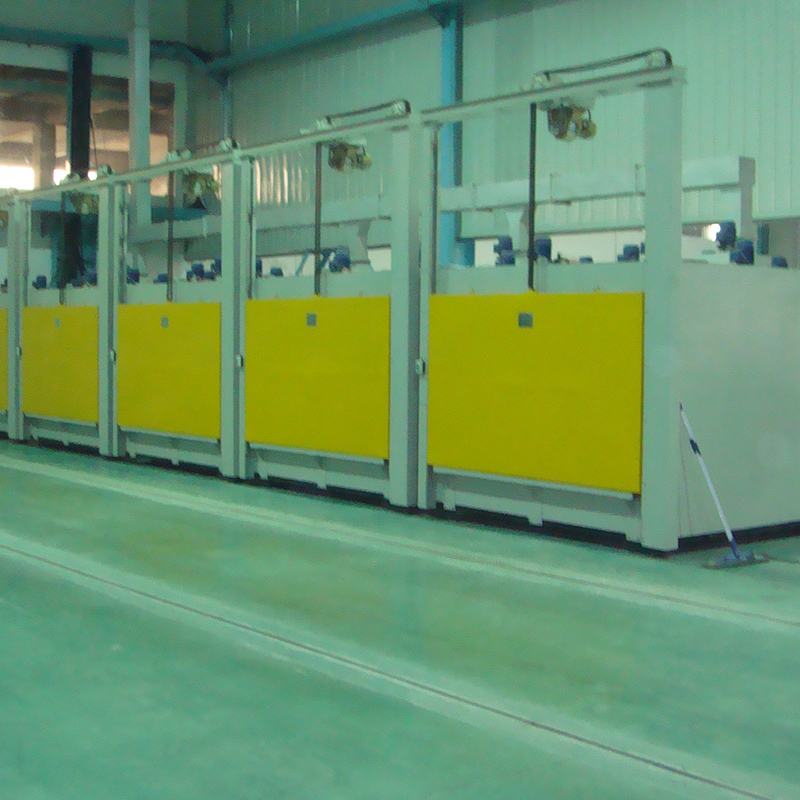

6. Optional configurations include: automatic lifting doors, tilting table, transfer/turning mechanisms, automatic push-pull trolley, temperature recorder, and computer-based distributed control system (DCS).

Main Technical Parameters of HB-J Series Amorphous Alloy Transformer Core Annealing Oven

Parameter	HB-1J	HB-2J	HB-3J	HB-4J
Dimension of working chamber(width×depth×height）	1500×1600×1800	2000×2000×2000	2000×3000×2000	2000×3500×2000
Operating temperature（℃）	Indoor temperature—450	Indoor temperature—450	Indoor temperature—450	Indoor temperature—450
Operating voltage/frequency（V/ Hz）	3—380/50	3—380/50	3—380/50	3—380/50
Heating power（kw）	66	90	117	135
Temperature uniformity(℃)	±5	±5	±5	±5
Temperature fluctuation（℃）	±1	±1	±1	±1
Weight（T）	3.5	4.5	6	6.5
Note: The product is non-standard, and can be designed and manufactured in accordance with the user’s requirements.
