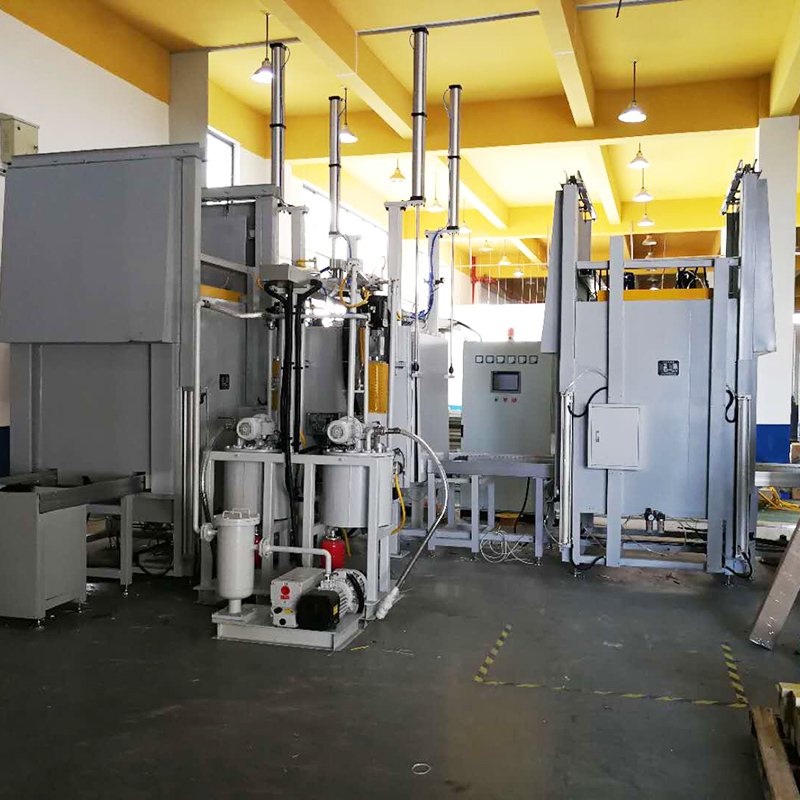

HAPL-1 Single-Station Vacuum Potting-Dispensing and Curing Production Line

The workpiece carrier features precise positioning, stable operation, and an optimized structural design, all of which have been granted national patents. The system adopts an optimized air circulation mode and enables continuous in-line segmented temperature control.

It is widely applied in industries such as micro motors, micro transformers, new energy vehicle motors, electronic capacitors, braking systems, frequency converters, and controllers.

Our Advantages

High Safety

· Low surface-load finned electric heating tubes are adopted, with a surface temperature below 350 °C, effectively eliminating risks of combustion and explosion;

· Forced ventilation ensures that the concentration of hazardous gases in the preheating and curing chambers remains within safe limits;

· Interlocking protection is implemented among the forced ventilation fan, circulating fan, and heating power supply.

Low Energy Consumption

· The lifting door of the heating chamber is well sealed to minimize heat loss;

· The external surface temperature rise is ≤ ambient temperature +15 °C.

Smooth Operation

· Mechanical positioning ensures high accuracy and reliability;

· A double-speed chain is used for load bearing, while a separate conveyor chain is used for transmission. The separation of load bearing and conveying is one of our patented technologies.

Long Service Life

· Heating tubes are robust and durable;

· The heating chamber is free of conveying mechanisms, electronic positioning devices, and pneumatic blocking components, ensuring stable operation and long-term use with minimal maintenance and aging.

Quality Assurance

· Programmable temperature control is applied during preheating and curing stages to meet multi-stage curing requirements;

· Horizontal or vertical air circulation is available depending on product characteristics;

· Temperature uniformity is controlled within ±5 °C to ensure consistent product quality.

Advanced Control

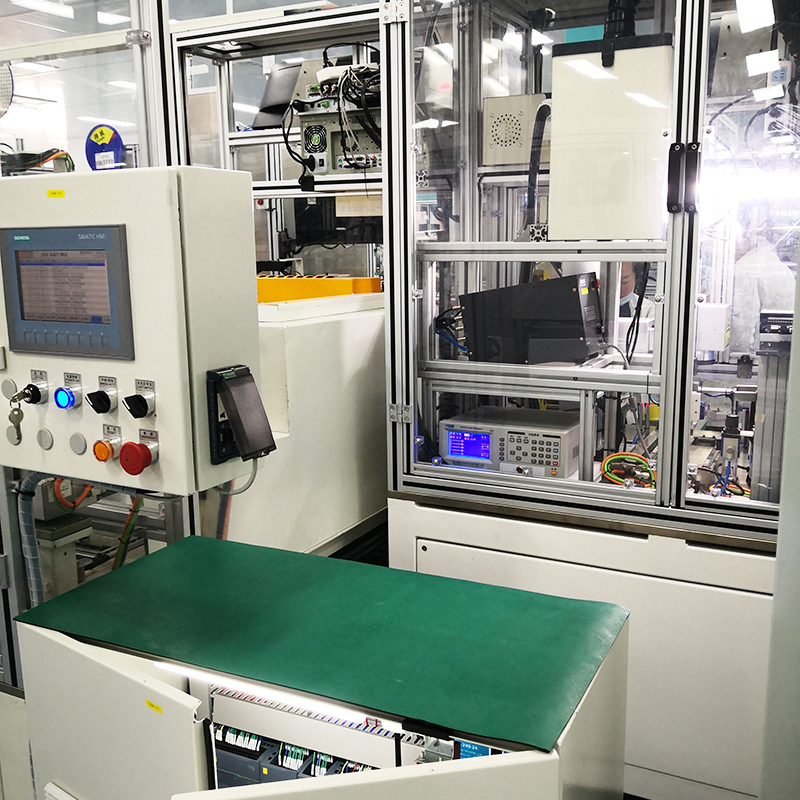

· Equipped with configuration software, computer-based centralized-distributed control, PLC with touch screen, on-site visualization, and remote mobile access.

Product Parameters

Main Technical Parameters of HAPL-1 Single-Station Vacuum Potting / Dispensing and Curing Production Line

Notes

1. This is a non-standard product and can be customized according to user requirements;

2. The size of the workpiece carrier depends on the dimensions and quantity of the products.
