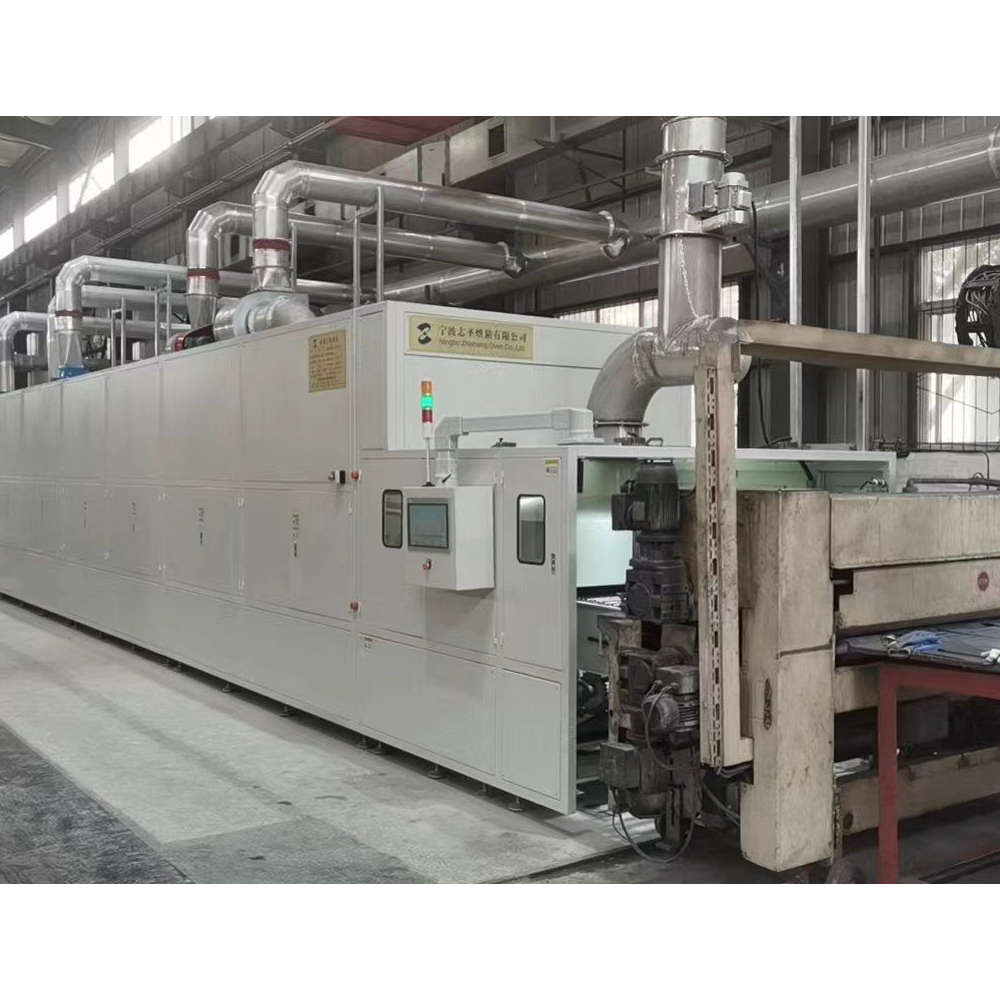

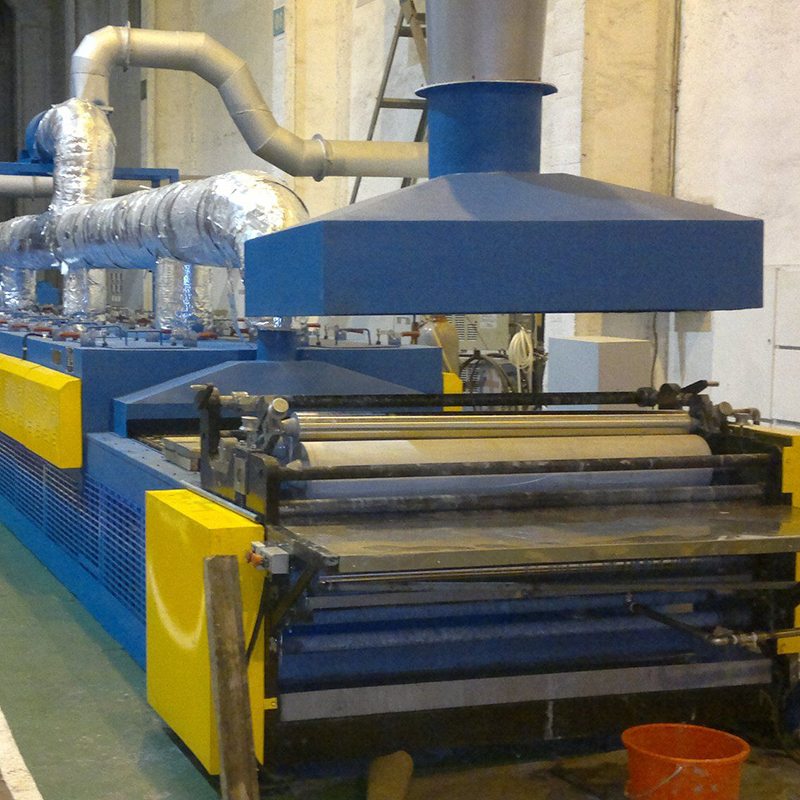

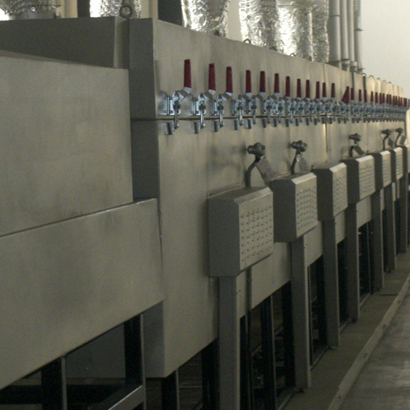

HA-S Series Silicon Steel Sheet Coating and Curing Oven

The system consists of a feeding system, coating system, coating circulation system, leveling and transition system, curing system, air cooling system, and control system.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Application

This equipment is designed for coating and curing silicon steel sheets used in large-scale generators, high-voltage motors, special motors, and high-efficiency energy-saving motors.

Market Advantages

The equipment improves motor efficiency, reduces environmental impact, and enhances product competitiveness.

Driven by policies promoting high-efficiency and energy-saving motors, environmental protection has become an essential responsibility for enterprises. Water-based coatings are expected to be widely adopted in the market. In contrast, traditional oil-based coatings cause environmental pollution, limit motor performance, and hinder industry development, and are therefore being gradually phased out.

Main Technical Parameters of HA-S Series Silicon Steel Sheet Coating and Curing Oven

Parameter	HA-1S	HA-2S
Dimensions of heating section (width x depth x height)mm	1300×8000×400	1500×10000×400
Overall dimensions (width x depth x height)mm	2100×17000×2500	2400×19000×2500
Maximum operating temperature （℃）	Three-zone temperature control, max. 450°C	Three-zone temperature control, max. 450°C
Operating voltage/frequency （V/ Hz）	3-380/50	3-380/50
Heating power（kw）	198	240
Design speed range （m/min）	6-12	6-12
Curing time（s）	50-100	50-100
Temperature fluctuation（℃）	±1	±1
Cross sectional temperature difference（℃）	±5	±5
Maximum coating width （mm）	1000	1200
Coating thickness（μｍ）	5-10	5-10

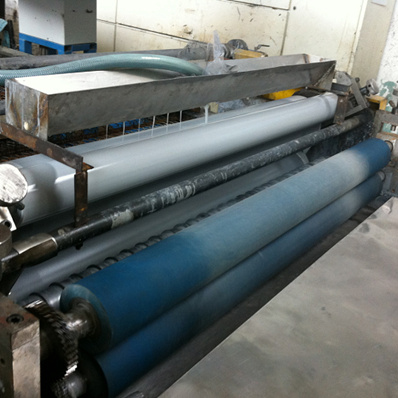

Coating Method	Double-sided roller coating	Double-sided roller coating
Cooling method	Downward forced-air cooling	Downward forced-air cooling
Outlet temperature （℃）	≤65	≤65
Note: The product is non-standard, and can be designed and manufactured in accordance with the user’s requirements .
